2SD1891 - NPN Transistor

2SD1891 Description

isc Silicon NPN Darlington Power Transistor INCHANGE Semiconductor 2SD1891 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 90V(Min). High DC Current Gain : hFE= 5000(Min) @IC= 3A. Low Collector Saturation Voltga.

2SD1891 Applications

* For power amplification ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 110 V VCEO Collector-Emitter Voltage 90 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 4 A ICP Collector Current-Peak Collector Power Dissipa

📥 Download Datasheet

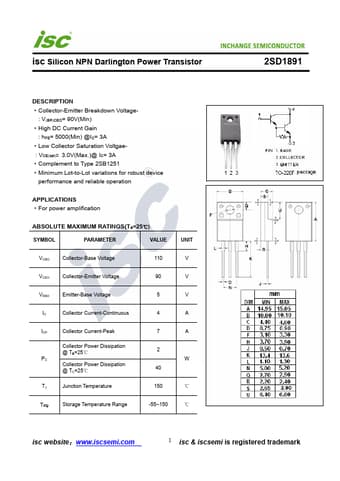

Preview of 2SD1891 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1891
Manufacturer
INCHANGE
File Size
187.69 KB
Datasheet
2SD1891-INCHANGE.pdf
Description
NPN Transistor
