2SD1899-K - NPN Transistor

2SD1899-K Description

isc Silicon NPN Power Transistors .
Low Collector Saturation Voltage. High Power Dissipation- : PC= 10W(Max)@TC=25℃. Complement to Type 2SB1261-K. Minimum Lot-to-Lot var.

2SD1899-K Applications

* Designed for use in audio amplifier and switching, especially in hybrid integrated circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Co

📥 Download Datasheet

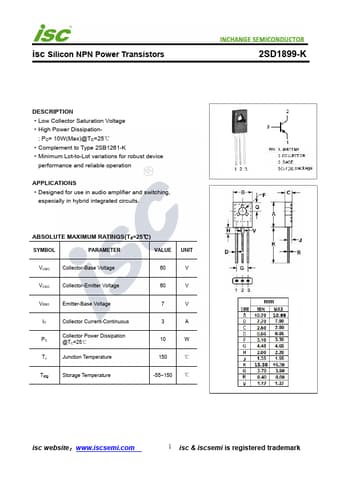

Preview of 2SD1899-K PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1899-K
Manufacturer
INCHANGE
File Size
203.74 KB
Datasheet
2SD1899-K-INCHANGE.pdf
Description
NPN Transistor
