2SD1899L Silicon NPN transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

2SD1899L Rev.E Mar.-2016 DATA SHEET / .
TO-126F NPN 。Silicon NPN transistor in a TO-126F Plastic Package.

📥 Download Datasheet

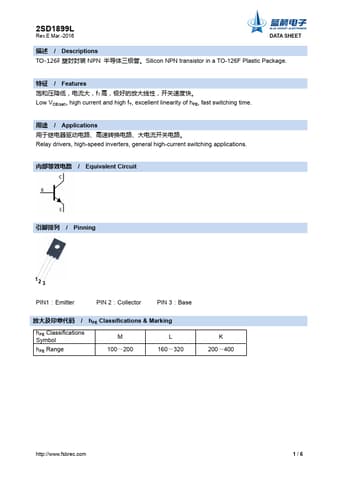

Preview of 2SD1899L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SD1899L
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.05 MB
Datasheet
2SD1899L-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor

Applications

* 、、。 Relay drivers, high-speed inverters, general high-current switching applications. / Equivalent Circuit / Pinning 12 3 PIN1:Emitter PIN 2:Collector PIN 3:Base / hFE Classifications & Marking hFE Classifications Symbol hFE Range M 100~200 L 160~320 K 200~400 http://www. fsbrec. com
