2SD1898 Datasheet, Transistor, GME

✔ 2SD1898 Features

High VCEO,VCEO=80V.
High IC,IC=1A(DC).
Good HFE Linearity.
Low VCE(sat).
Complement the 2SB1260. Pb Lead-free 2SD1898 APPLICATIONS
NPN silicon transistor.

✔ 2SD1898 Application

NPN silicon transistor. ORDERING INFORMATION Type No. Marking 2SD1898 DF SOT-89 Package Code SOT-89

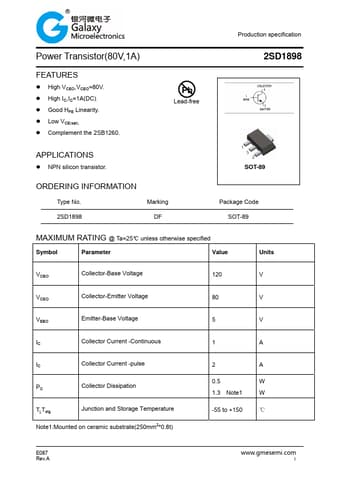

PDF File Details

GME manufacturer logo and representative part image

Part number:

2SD1898

Manufacturer:

GME

File Size:

214.20kb

Download:

📄 Datasheet

Description:

Power transistor.

📥 Download PDF (214.20kb)

Rating: 1 ★ (4 votes)
