2SD1815 - NPN Epitaxial Planar Silicon Transistors

2SD1815 Description

Production specification NPN Epitaxial Planar Silicon Transistors .

2SD1815 Features

* Adoption of FBET,MBIT processes. Pb
* Large current capacity and wide ASO. Lead-free
* Low collector-to-emitter saturation voltage.
* Excllent linearity of hFE.
* High fT.

2SD1815 Applications

* Relay drivers,high-speed inverters, Converters,and other high-current Switching applications. TO-251 TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO Collector-Base Volage 120 V VCEO Collector-Emitter Voltage 10

📥 Download Datasheet

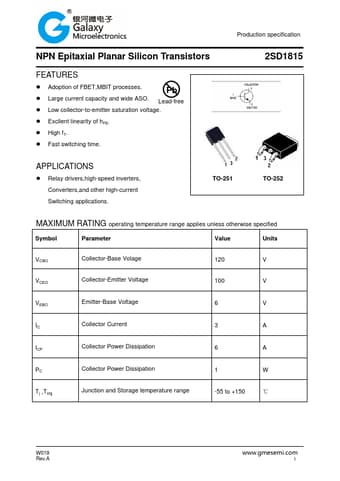

Preview of 2SD1815 PDF
