2SD1899 Datasheet - Weitron

2SD1899_Weitron.pdf

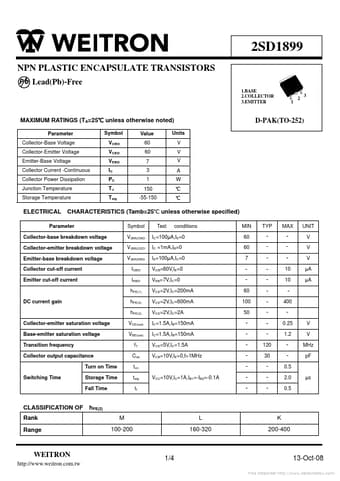

Preview of 2SD1899 PDF
2SD1899 Datasheet Preview Page 2 2SD1899 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1899

Manufacturer:

Weitron

File Size:

628.61 KB

Description:

Npn transistor.

2SD1899, NPN Transistor

2SD1899 NPN PLASTIC ENCAPSULATE TRANSISTORS P b Lead(Pb)-Free 1.BASE 2.COLLECTOR 3.EMITTER 1 2 3 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC TJ Tstg Value 60 60 7 3 1 150 -55-150 Units V V V A W ℃ ℃ D-PAK(TO-252) ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Paramete
