WFF12N65LCA - Silicon N-Channel MOSFET

WFF12N65LCA Description

WFF12N65LCA Product .
Silicon N-Channel MOSFET Features. 650V, 12A. RDS(ON) = 0. Fast switching. 100% a.

WFF12N65LCA Features

* 650V, 12A
* RDS(ON) = 0.78Ω (Max. ) @ VGS = 10V, ID = 6A
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability

📥 Download Datasheet

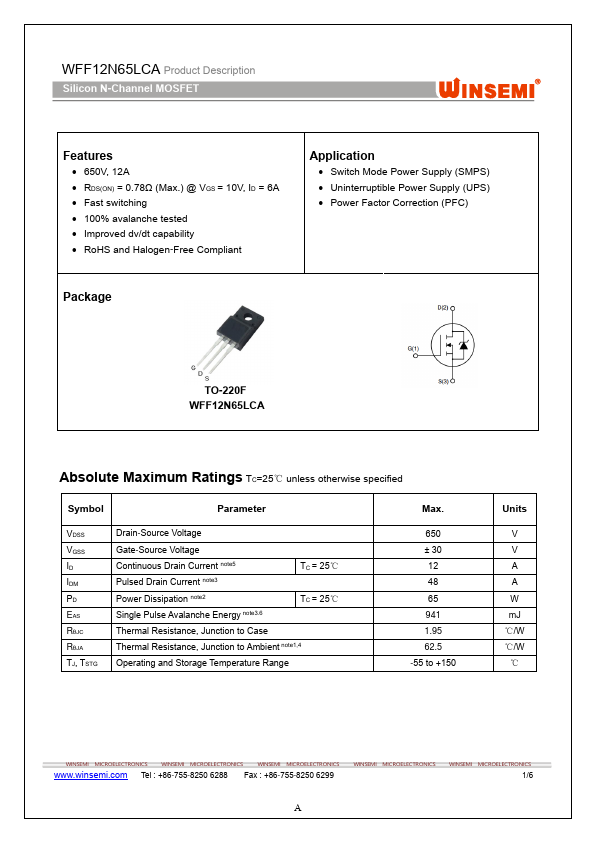

Preview of WFF12N65LCA PDF

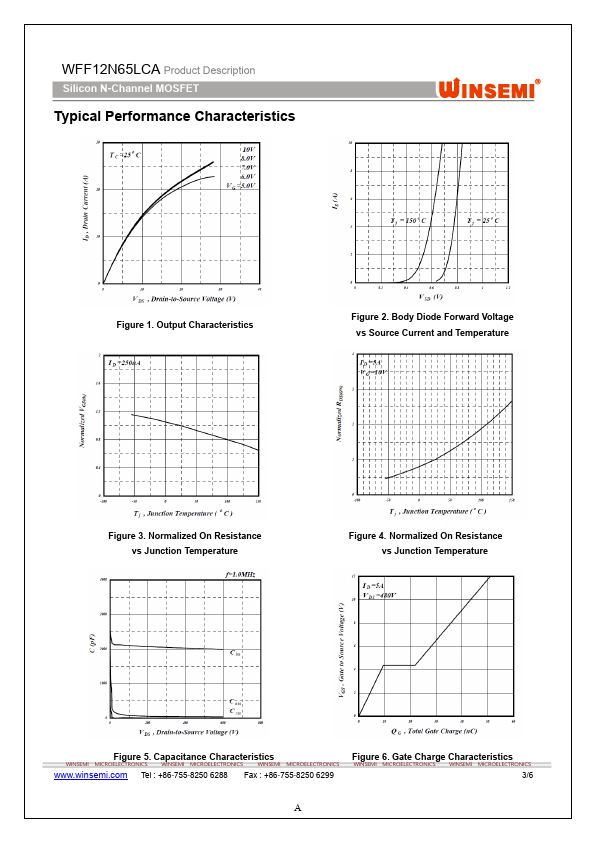

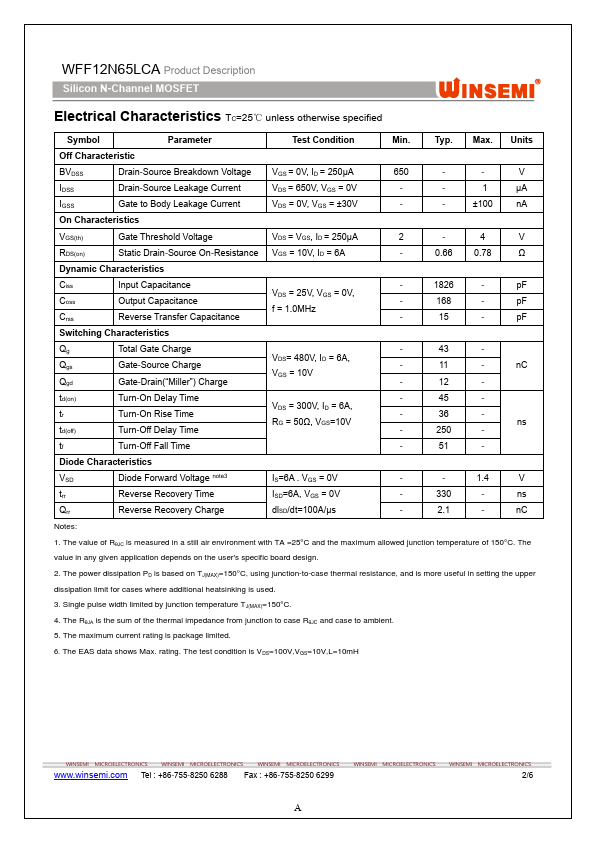

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WFF12N65LCA
Manufacturer
Winsemi
File Size
512.20 KB
Datasheet
WFF12N65LCA-Winsemi.pdf
Description
Silicon N-Channel MOSFET
