WFF840FS - Silicon N-Channel MOSFET

WFF840FS Description

WFF840FS Product .
Silicon N-Channel MOSFET Features. 500V, 9A. RDS(ON) = 0. Fast switching. 100%.

WFF840FS Features

* 500V, 9A
* RDS(ON) = 0.85Ω (Max. ) @ VGS = 10V, ID = 4.5A
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability

📥 Download Datasheet

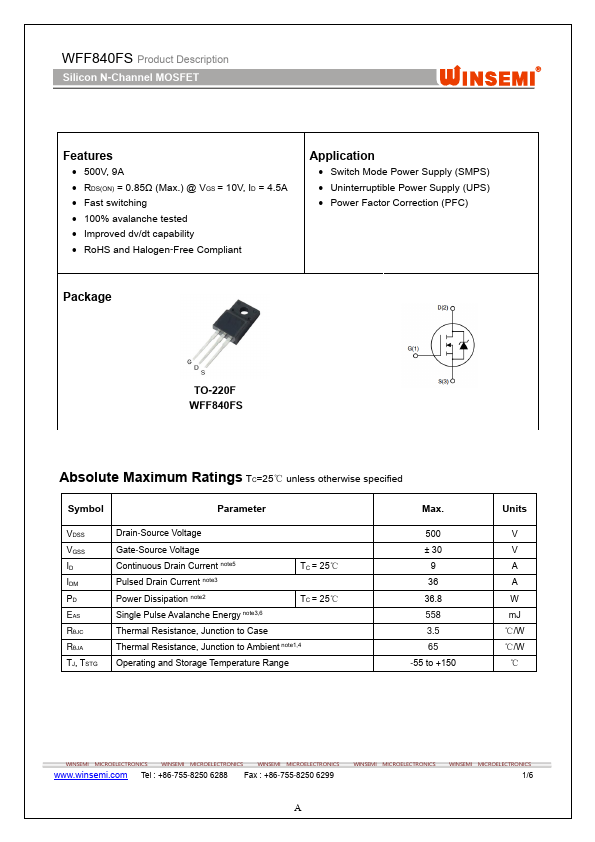

Preview of WFF840FS PDF

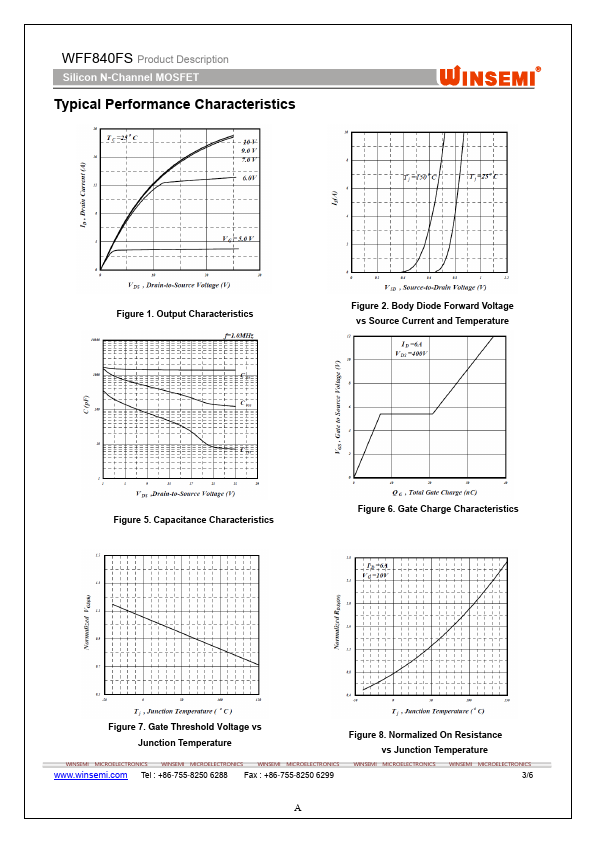

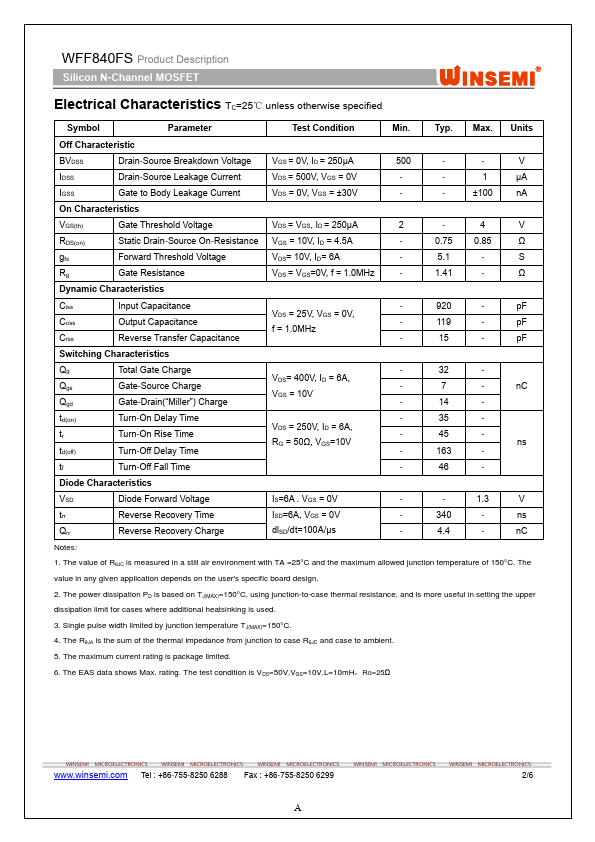

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WFF840FS
Manufacturer
Winsemi
File Size
544.30 KB
Datasheet
WFF840FS-Winsemi.pdf
Description
Silicon N-Channel MOSFET
