WSD6056DN56 - Dual N-Channel MOSFET

Winsok

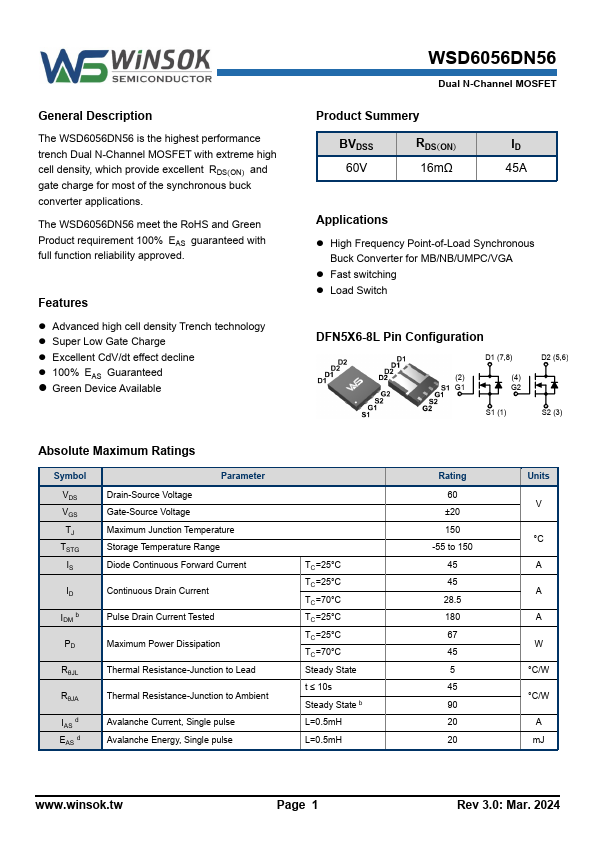

WSD6056DN56 Datasheet Preview — Preview of WSD6056DN56 PDF

Datasheet Details

Part number	WSD6056DN56
Manufacturer	Winsok
File Size	709.09 KB
Description	Dual N-Channel MOSFET
Datasheet	WSD6056DN56-Winsok.pdf

WSD6056DN56 Product details

Description

The WSD6056DN56 is the highest performance trench Dual N-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
100% EAS Guaranteed.
Green Device Available WSD6056DN56 Dual N-Channel MOSFET Product Summery BVDSS 60V RDS(ON) 16mΩ ID 45A.
