WSD6075DN56 - N-Ch and P-Channel MOSFET

Winsok

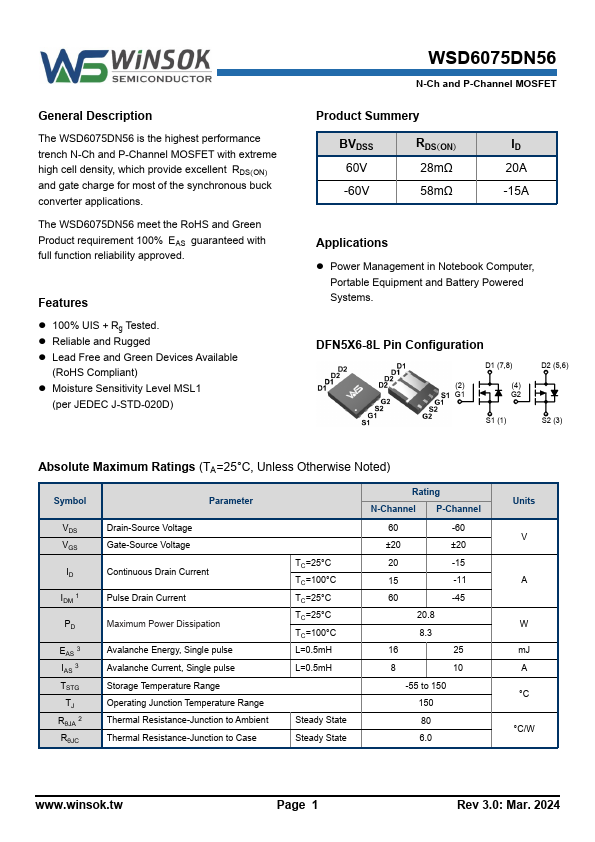

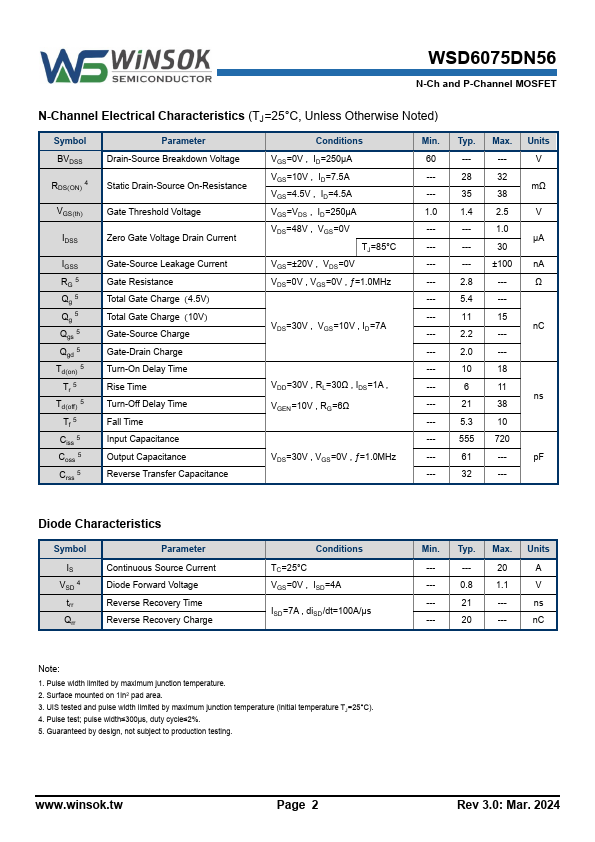

WSD6075DN56 Datasheet Preview — Preview of WSD6075DN56 PDF

Datasheet Details

Part number	WSD6075DN56
Manufacturer	Winsok
File Size	1.33 MB
Description	N-Ch and P-Channel MOSFET
Datasheet	WSD6075DN56-Winsok.pdf

WSD6075DN56 Product details

Description

The WSD6075DN56 is the highest performance trench N-Ch and P-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

100% UIS + Rg Tested.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
Moisture Sensitivity Level MSL1 (per JEDEC J-STD-020D) WSD6075DN56 N-Ch and P-Channel MOSFET Product Summery BVDSS 60V -60V RDS(ON) 28mΩ 58mΩ ID 20A -15A.
