WSD60N10GDN56 - N-Channel MOSFET

Winsok

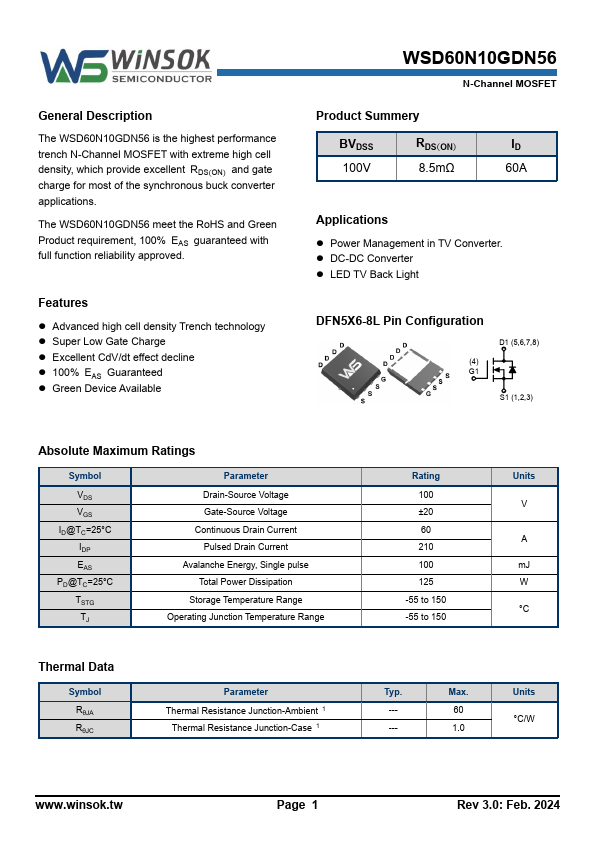

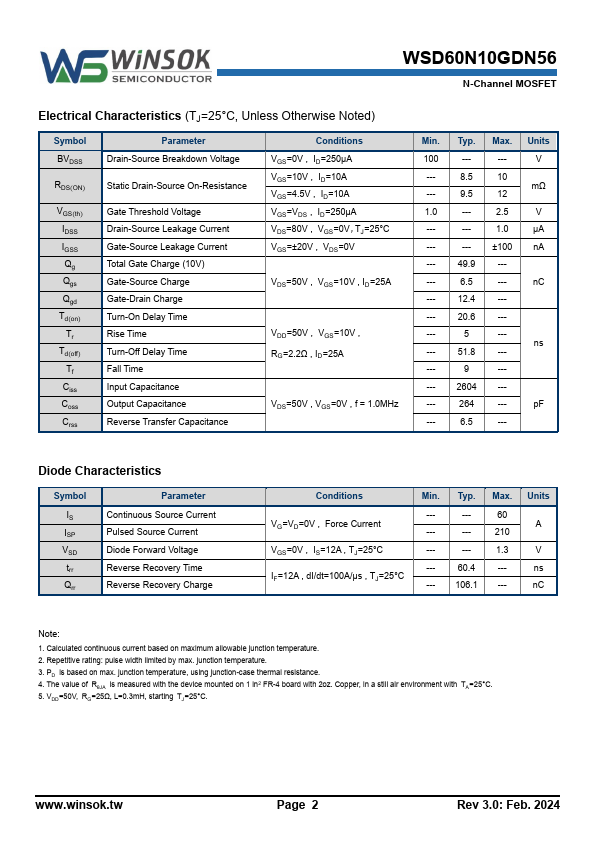

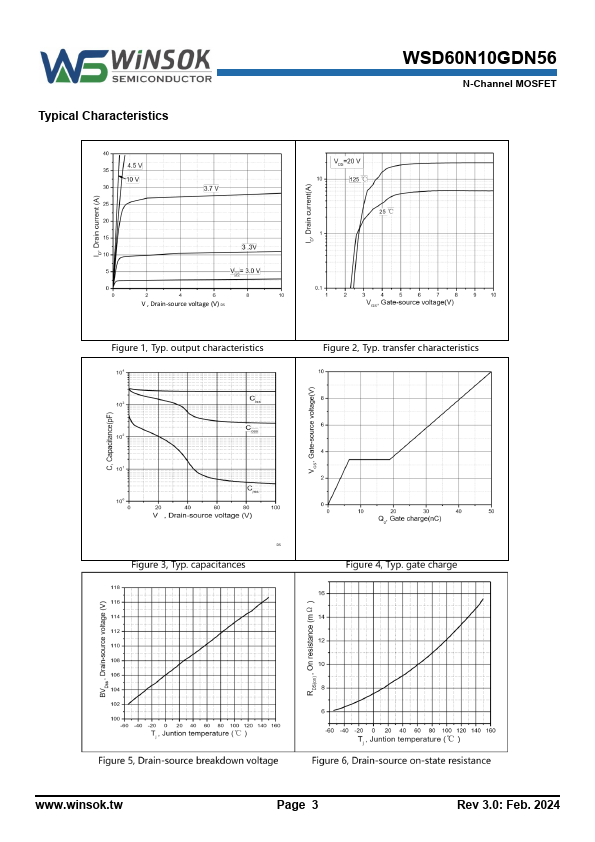

WSD60N10GDN56 Datasheet Preview — Preview of WSD60N10GDN56 PDF

Datasheet Details

Part number	WSD60N10GDN56
Manufacturer	Winsok
File Size	1.11 MB
Description	N-Channel MOSFET
Datasheet	WSD60N10GDN56-Winsok.pdf

WSD60N10GDN56 Product details

Description

The WSD60N10GDN56 is the highest performance trench N-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
100% EAS Guaranteed.
Green Device Available WSD60N10GDN56 N-Channel MOSFET Product Summery BVDSS 100V RDS(ON) 8.5mΩ ID 60A.
