WCS1500 - Hall Effect Base Linear Current Sensor

Winson

WCS1500 Datasheet Preview — Preview of WCS1500 PDF

Datasheet Details

Part number	WCS1500
Manufacturer	Winson
File Size	930.85 KB
Description	Hall Effect Base Linear Current Sensor
Datasheet	WCS1500-Winson.pdf

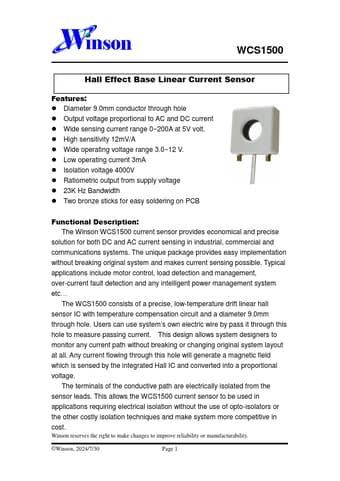

WCS1500 Product details

Description

The Winson WCS1500 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems.The unique package provides easy implementation without breaking original system and makes current sensing possible.Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc… The WCS1500 consists of a precise, low-temperature drift linear h

Features

Diameter 9.0mm conductor through hole.
Output voltage proportional to AC and DC current.
Wide sensing current range 0~200A at 5V volt.
High sensitivity 12mV/A.
Wide operating voltage range 3.0~12 V.
Low operating current 3mA.
Isolation voltage 4000V.
Ratiometric output from supply voltage.
23K Hz Bandwidth.
Two bronze sticks for easy soldering on PCB Functional.
