WCS1600 Datasheet, Sensor, Winson

WCS1600 Features

  • Sensor
  • Diameter 9.0mm conductor through hole
  • Output voltage proportional to AC and DC current
  • Wide sensing current range 0~100A at 5V volt.
  • High sensit

PDF File Details

Part number:

WCS1600

Manufacturer:

Winson

File Size:

931.15kb

Download:

📄 Datasheet

Description:

Hall effect base linear current sensor. The Winson WCS1600 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commerc

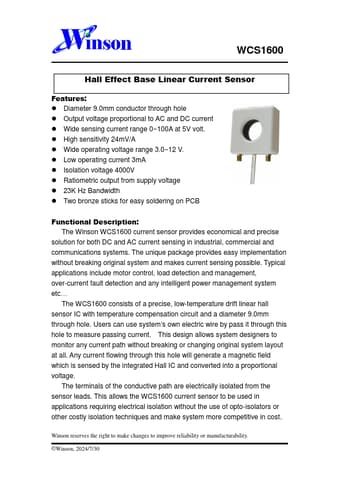

Datasheet Preview: WCS1600 📥 Download PDF (931.15kb)
Page 2 of WCS1600 Page 3 of WCS1600

WCS1600 Application

  • Applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc… The
