WCS2302 Datasheet, Switch, Winson

WCS2302 Features

  • Switch
  • Current switch, current measurement and on-site calibration
  • Response time 10us
  • High resolution ±3mA
  • Wide sensing current range 0~2.0 A

PDF File Details

Part number:

WCS2302

Manufacturer:

Winson

File Size:

1.21MB

Download:

📄 Datasheet

Description:

Adjustable current switch. : The Winson WCS2302 is a current switch designed for current switching and current measuring. The current switching can be adjusted

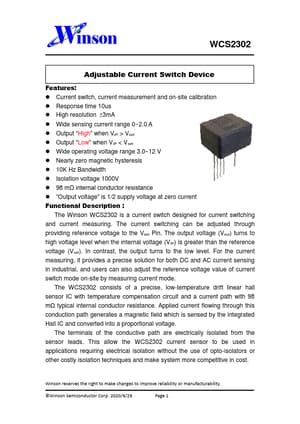

Datasheet Preview: WCS2302 📥 Download PDF (1.21MB)
Page 2 of WCS2302 Page 3 of WCS2302

WCS2302 Application

  • Applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive
