WCS2320 - Adjustable Current Switch

Winson

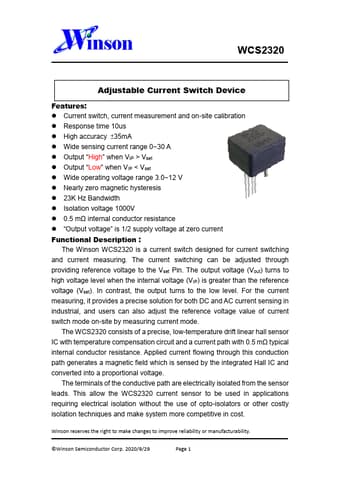

WCS2320 Datasheet Preview — Preview of WCS2320 PDF

Datasheet Details

Part number	WCS2320
Manufacturer	Winson
File Size	914.52 KB
Description	Adjustable Current Switch
Datasheet	WCS2320-Winson.pdf

WCS2320 Product details

Description

: The Winson WCS2320 is a current switch designed for current switching and current measuring.The current switching can be adjusted through providing reference voltage to the Vset Pin.The output voltage (Vout) turns to high voltage level when the internal voltage (VIP) is greater than the reference voltage (Vset).In contrast, the output turns to the low level.For the current measuring, it provides a precise solution for both DC and AC current sensing in industrial, and users can also adjust

Features

Current switch, current measurement and on-site calibration.
Response time 10us.
High accuracy ±35mA.
Wide sensing current range 0~30 A.
Output “High” when VIP > Vset.
Output “Low” when VIP < Vset.
Wide operating voltage range 3.0~12 V.
Nearly zero magnetic hysteresis.
23K Hz Bandwidth.
Isolation voltage 1000V.
0.5 mΩ internal conductor resistance.
“Output voltage” is 1/2 supply voltage at zero current Functional.
