WCS2305

Adjustable Current Switch

WCS2305 Features

* Current switch, current measurement and on-site calibration

* Response time 10us

* High Resolution ±15mA

* Wide sensing current range 0~8.0 A

* Output “High” when VIP > Vset

* Output “Low” when VIP < Vset

* Wide operating voltage range 3.0~12 V

* Nearly zero magnet

WCS2305 General Description

: The Winson WCS2305 is a current switch designed for current switching and current measuring. The current switching can be adjusted through providing reference voltage to the Vset Pin. The output voltage (Vout) turns to high voltage level when the internal voltage (VIP) is greater than the referenc.

WCS2305 Datasheet (1.23 MB)

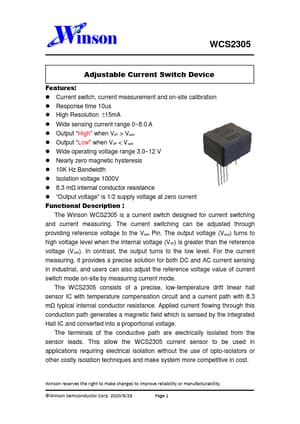

Preview of WCS2305 PDF

Datasheet Details

Part number:

WCS2305

Manufacturer:

Winson

File Size:

1.23 MB

Description:

Adjustable current switch.
