Part number:
C3M0075120J
Manufacturer:
Wolfspeed
File Size:
875.47 KB
Description:
Silicon carbide power mosfet.

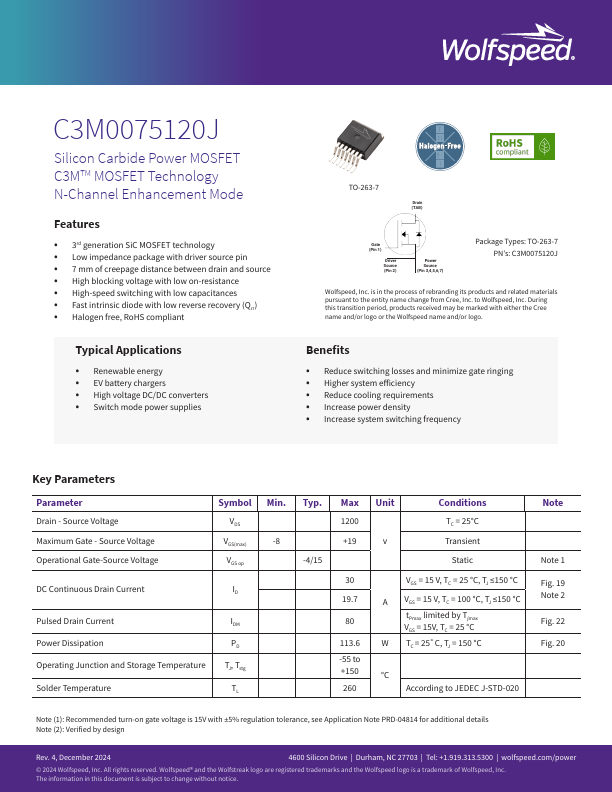

C3M0075120J Datasheet (875.47 KB)
* 3rd generation SiC MOSFET technology
* Low impedance package with driver source pin
* 7 mm of creepage distance between drain and source
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances
* Fast intrinsic diod
C3M0075120J Datasheet (875.47 KB)
C3M0075120J
Wolfspeed
875.47 KB
Silicon carbide power mosfet.
