C3M0030090K Datasheet - CREE

C3M0030090K, Silicon Carbide Power MOSFET

VDS 900 V C3M0030090K ID @ 25˚C 73 A Silicon Carbide Power MOSFET TM C3M MOSFET Technology RDS(on) 30 mΩ N-Channel Enhancement Mode .

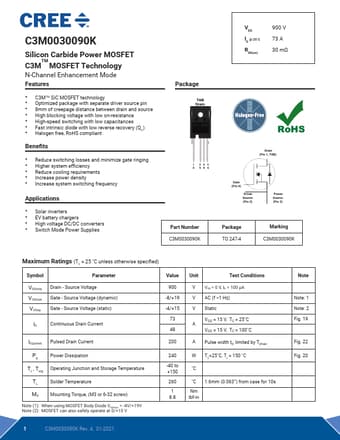

datasheet Preview Page 1 from Datasheet4u.com

C3M0030090K-CREE.pdf

C3M0030090K Datasheet Preview — Preview of C3M0030090K PDF

Datasheet Details

Part number:

C3M0030090K

Manufacturer:

CREE

File Size:

1.04 MB

Description:

Silicon Carbide Power MOSFET

Features

* Package
* C3MTM SiC MOSFET technology
* Optimized package with separate driver source pin
* 8mm of creepage distance between drain and source
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances

Applications

* Solar inverters
* EV battery chargers
* High voltage DC/DC converters
* Switch Mode Power Supplies Part Number C3M0030090K Drain (Pin 1, TAB) Gate (Pin 4) Driver Source (Pin 3) Power Source (Pin 2) Package TO 247-4 Marking C3M0030090K Maximum Ratings (TC = 25
