CPM2-1200-0080A

SiC Gen 2nd MOSFET

CPM2-1200-0080A Features

* Enhanced 2nd Generation SiC MOSFET

* High blocking voltage with low on-resistance

* High speed switching with low capacitance

* Fast intrinsic diode with low reverse recovery Applications

* Server & Telecom PSU

* Motor Drives

* Solar Inverte

CPM2-1200-0080A General Description

This is the Wolfspeed’s 2nd generation of high performance silicon carbide MOSFET in a packageless bare die format to be implemented into any custom module design. The high blocking voltage with low on-resistance, high speed switching with low capacitance make this MOSFET ideal for high frequency sw.

CPM2-1200-0080A Datasheet (1.19 MB)

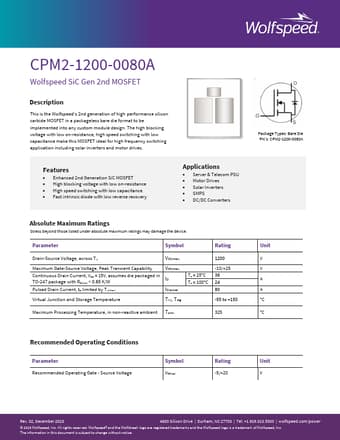

Preview of CPM2-1200-0080A PDF

Datasheet Details

Part number:

CPM2-1200-0080A

Manufacturer:

Wolfspeed

File Size:

1.19 MB

Description:

Sic gen 2nd mosfet.
