CPM2-1200-0040B

Silicon Carbide Power MOSFET

CPM2-1200-0040B Features

* Chip Outline

* New C2M SiC MOSFET technlogy

* High Blocking Voltage with Low On-Resistance

* High Speed Switching with Low Capacitances

* Easy to Parallel and Simple to Drive

* Avalanche Ruggedness

* Resistant to Latch-Up

* Halogen Fre

CPM2-1200-0040B Datasheet (418.05 KB)

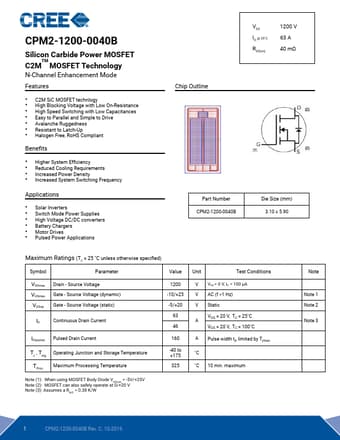

Preview of CPM2-1200-0040B PDF

Datasheet Details

Part number:

CPM2-1200-0040B

Manufacturer:

Cree

File Size:

418.05 KB

Description:

Silicon carbide power mosfet.
VDS 1200 V CPM2-1200-0040B Silicon Carbide Power MOSFET TM C2M MOSFET Technology ID @ 25˚C 36 A RDS(on) 40 mΩ N-Channel Enhancement Mode.
