CPM2-1200-0040A Silicon Carbide Power MOSFET

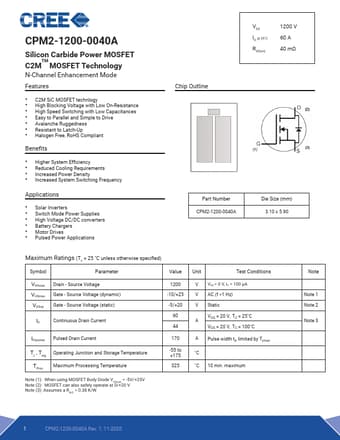

📥 Download Datasheet  Datasheet Preview Page 1

Description

CPM2-1200-0040A Silicon Carbide Power MOSFET TM C2M MOSFET Technology N-Channel Enhancement Mode .

📥 Download Datasheet

Preview of CPM2-1200-0040A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CPM2-1200-0040A
Manufacturer
Cree
File Size
517.56 KB
Datasheet
CPM2-1200-0040A-Cree.pdf
Description
Silicon Carbide Power MOSFET

Features

* Chip Outline
* C2M SiC MOSFET technlogy
* High Blocking Voltage with Low On-Resistance
* High Speed Switching with Low Capacitances
* Easy to Parallel and Simple to Drive
* Avalanche Ruggedness
* Resistant to Latch-Up
* Halogen Free, RoHS Com

Applications

* Solar Inverters
* Switch Mode Power Supplies
* High Voltage DC/DC converters
* Battery Chargers
* Motor Drives
* Pulsed Power Applications Part Number CPM2-1200-0040A VDS ID @ 25˚C RDS(on) 1200 V 60 A 40 mΩ Die Size (mm) 3.10 x 5.90 Maximum Rati
