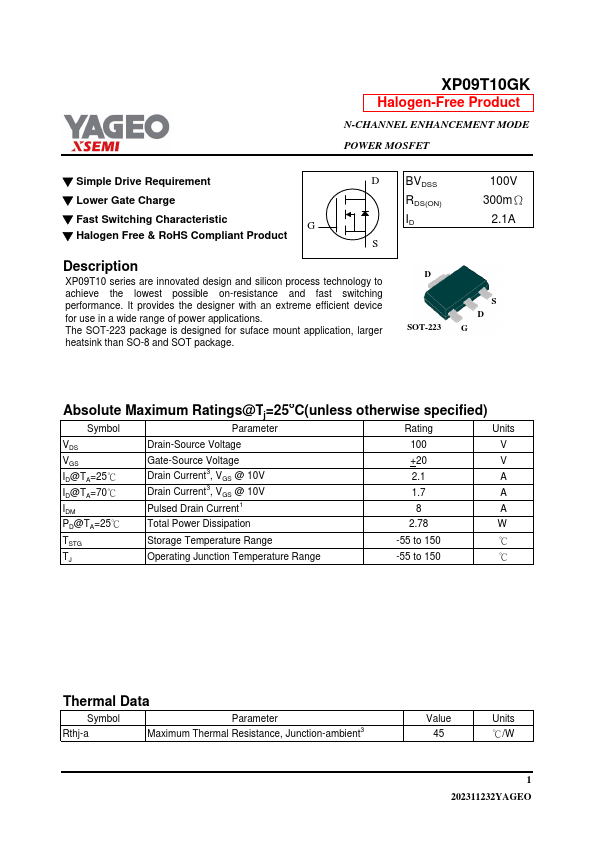

XP09T10GK N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP09T10GK Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Character.
XP09T10 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP09T10GK-YAGEO.pdf

XP09T10GK Datasheet Preview — Preview of XP09T10GK PDF

Datasheet Details

Part number:

XP09T10GK

Manufacturer:

YAGEO

File Size:

182.57 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-223 package is designed for suface mount application, larger heatsink than SO-8 and SOT package. BVDSS RDS(ON) ID 100V 300mΩ 2.1A D SOT-223 S D G Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ T
