XP3CA010MT N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

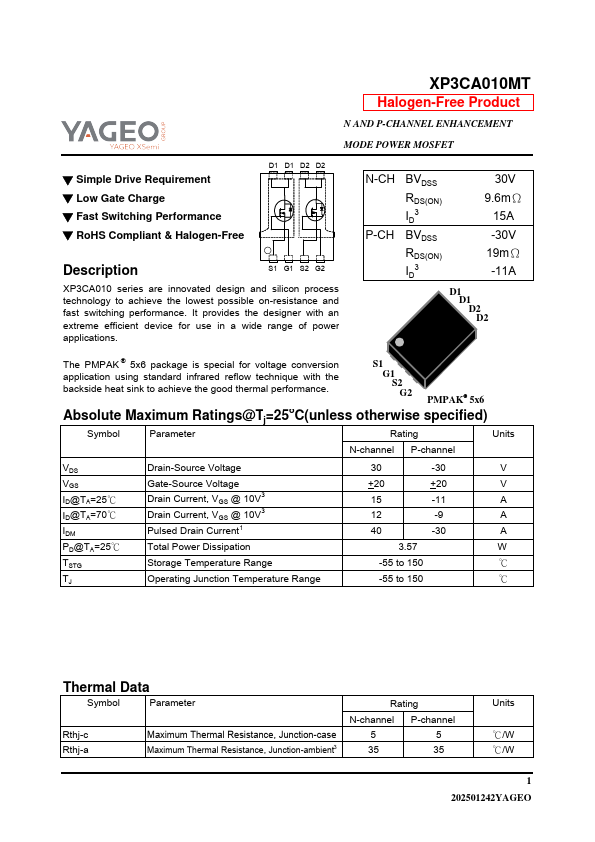

📥 Download Datasheet Datasheet Preview Page 1

Description

XP3CA010MT Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Perform.
S1 G1 S2 G2 XP3CA010 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching perf.

📥 Download Datasheet

Preview of XP3CA010MT PDF

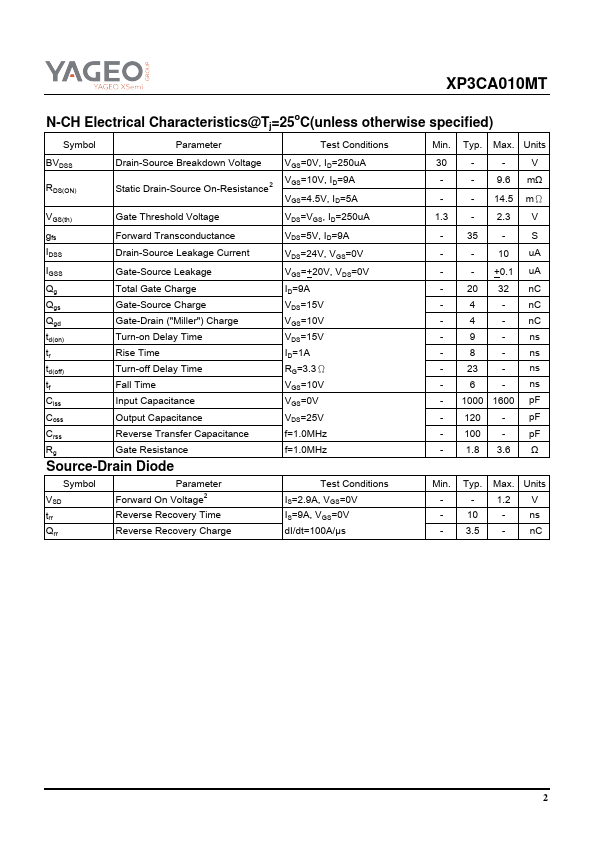

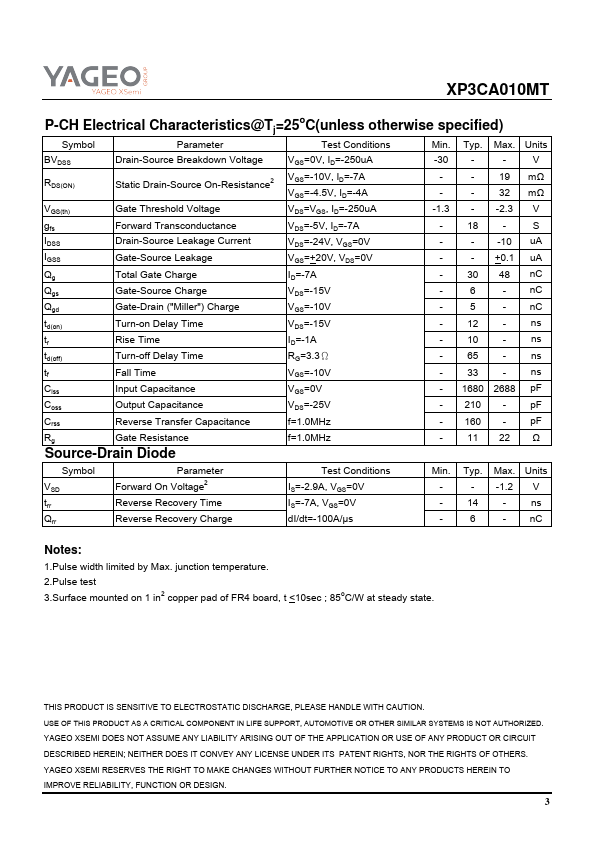

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3CA010MT
Manufacturer
YAGEO
File Size
740.39 KB
Datasheet
XP3CA010MT-YAGEO.pdf
Description
N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID3 BVDSS RDS(ON) ID3 30V 9.6mΩ 15A -30V 19mΩ -11A D1 D1 D2 D2 The PMPAK ® 5x6 package is special for voltage conversion S1 application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. G1 S2 G2 PMPAK® 5x6
