XP4P040J P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P040J Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteri.
XP4P040 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

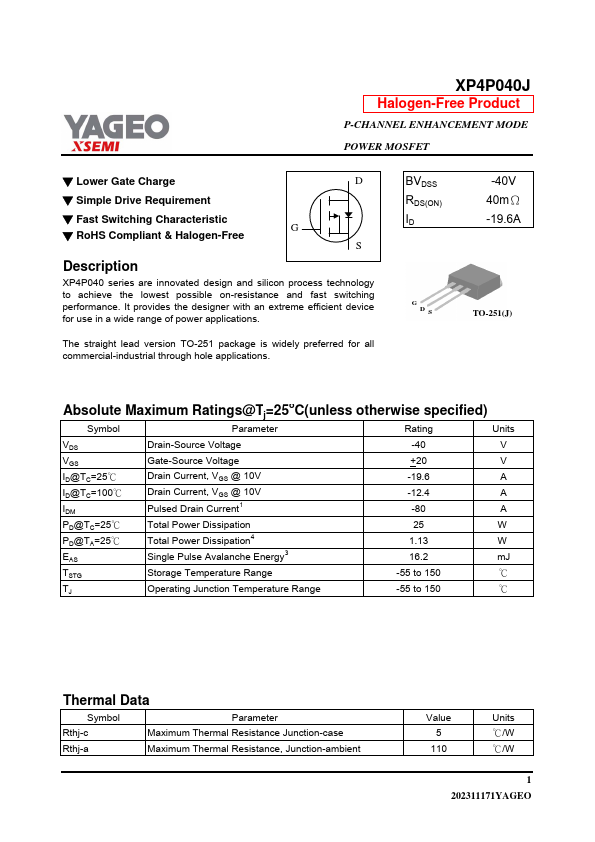

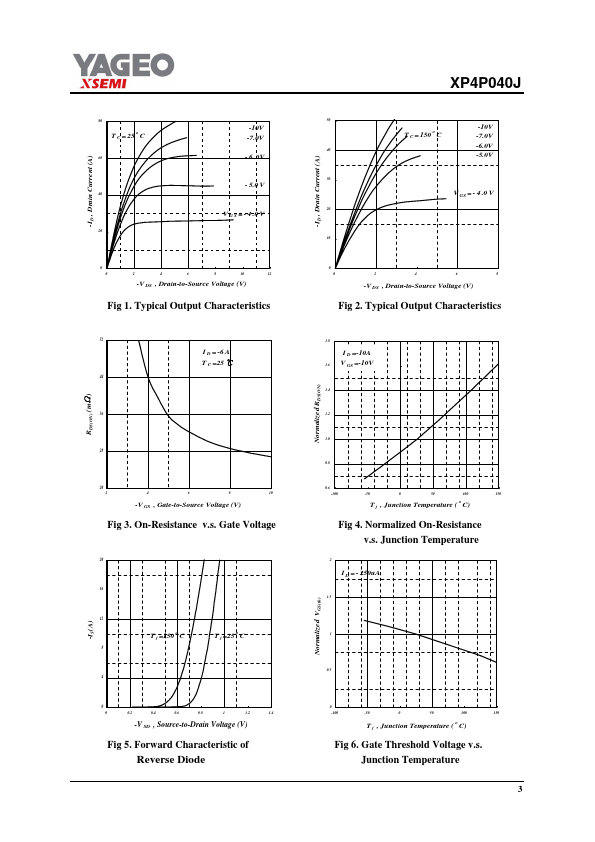

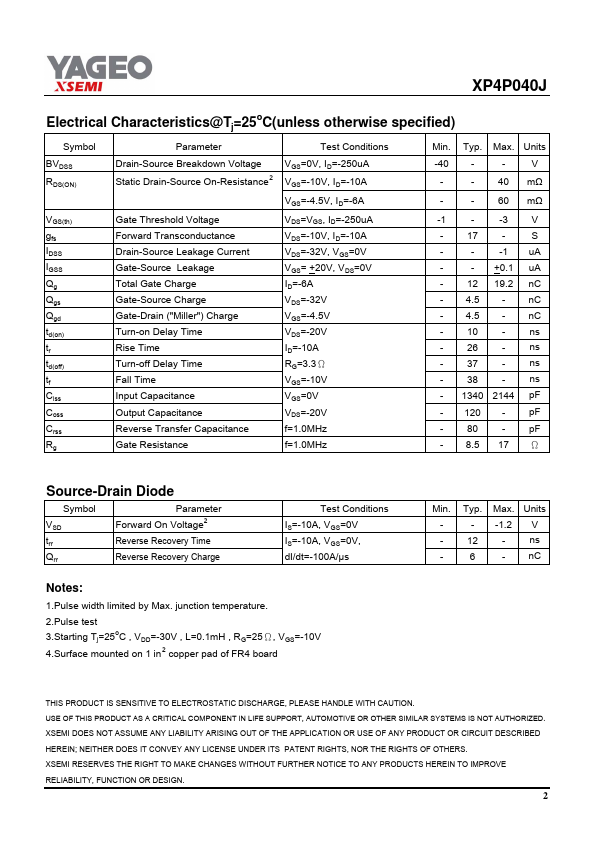

XP4P040J Datasheet Preview — Preview of XP4P040J PDF

Datasheet Specifications

Part number: XP4P040J
Manufacturer: YAGEO
File Size: 180.35 KB
Datasheet: XP4P040J-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID G DS -40V 40mΩ -19.6A TO-251(J) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ ID@TC=100℃ IDM
