XP4P040M P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P040M Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Fast Switching Characteristic ▼ Simple Drive Requireme.
XP4P040 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

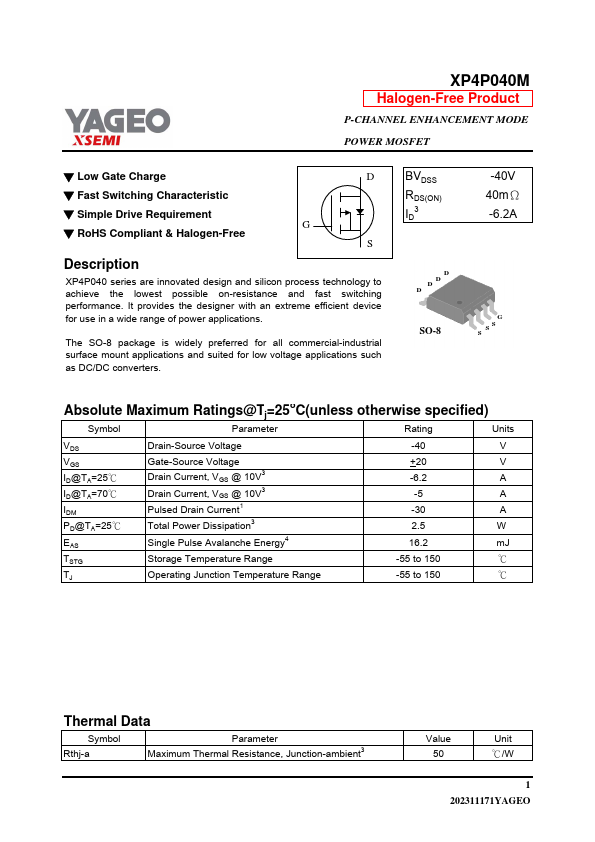

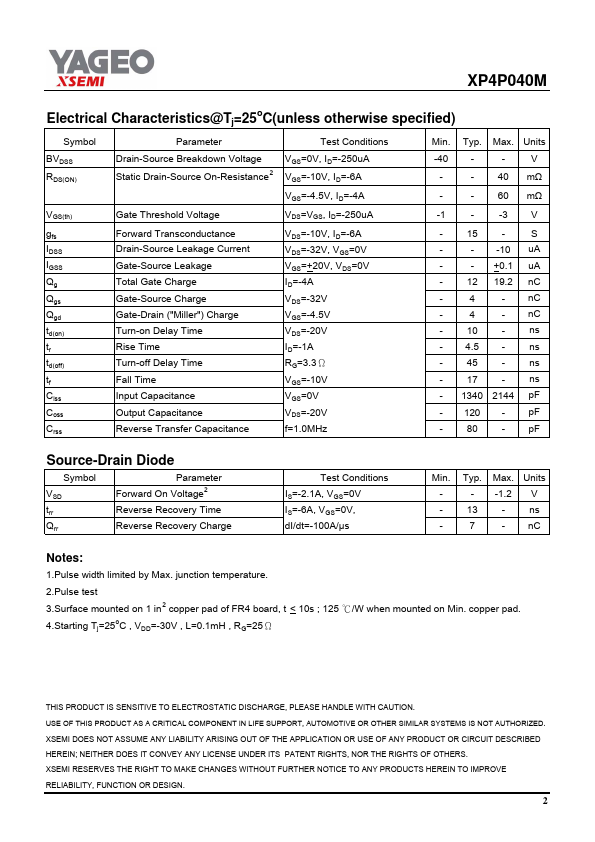

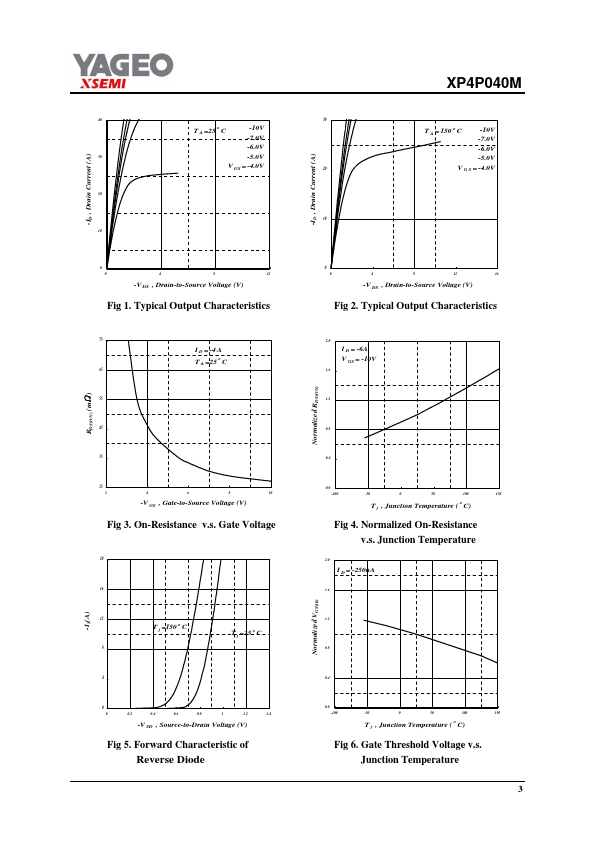

XP4P040M Datasheet Preview — Preview of XP4P040M PDF

Datasheet Specifications

Part number: XP4P040M
Manufacturer: YAGEO
File Size: 246.84 KB
Datasheet: XP4P040M-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 D D D D SO-8 -40V 40mΩ -6.2A G S SS Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
