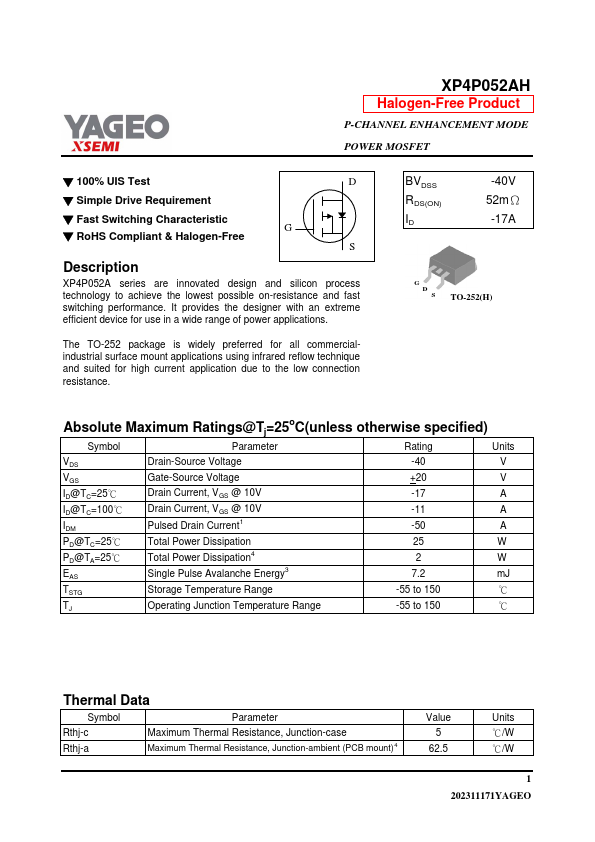

XP4P052AH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P052AH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteristi.
XP4P052A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP4P052AH Datasheet Preview — Preview of XP4P052AH PDF

Datasheet Specifications

Part number: XP4P052AH
Manufacturer: YAGEO
File Size: 181.84 KB
Datasheet: XP4P052AH-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -40V 52mΩ -17A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless
