XP4P090N P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P090N Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Package Outline ▼ Surface Mount Device ▼ .
XP4P090 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

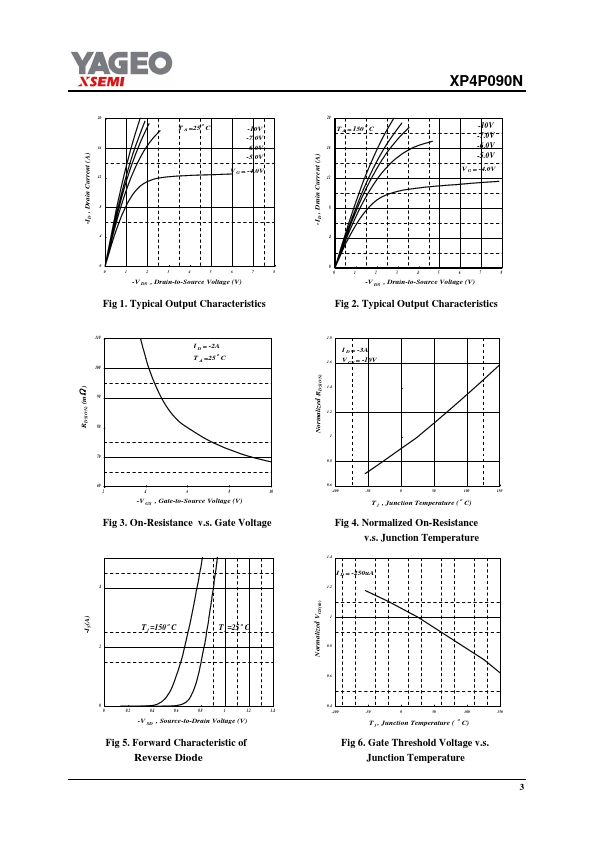

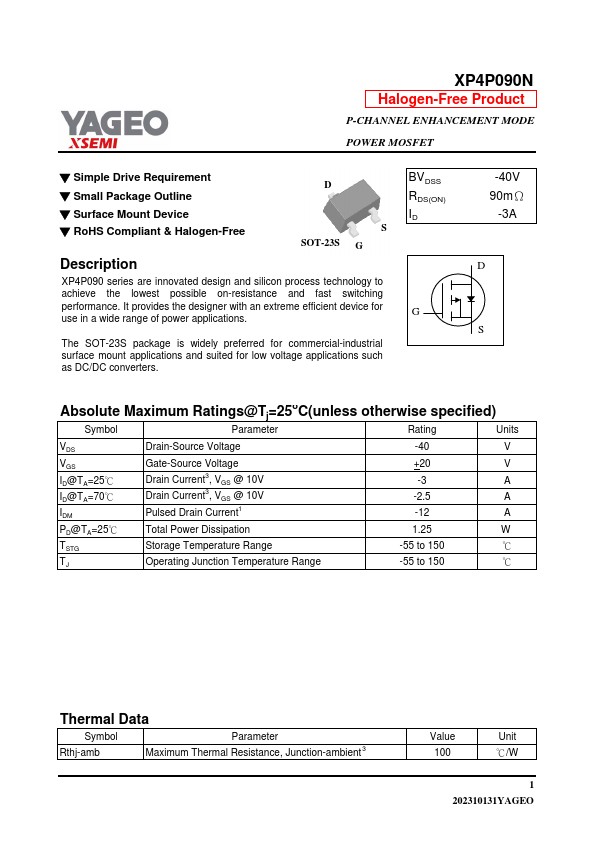

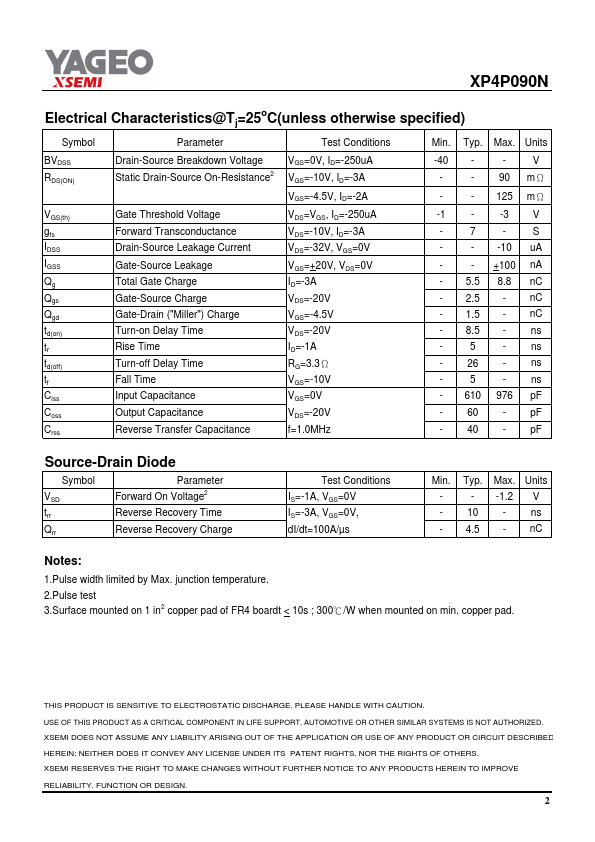

XP4P090N Datasheet Preview — Preview of XP4P090N PDF

Datasheet Specifications

Part number: XP4P090N
Manufacturer: YAGEO
File Size: 153.14 KB
Datasheet: XP4P090N-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-23S package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID G -40V 90mΩ -3A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS
