XP6N100JV N-CHANNEL ENHANCEMENT MODE POWER MOSFET

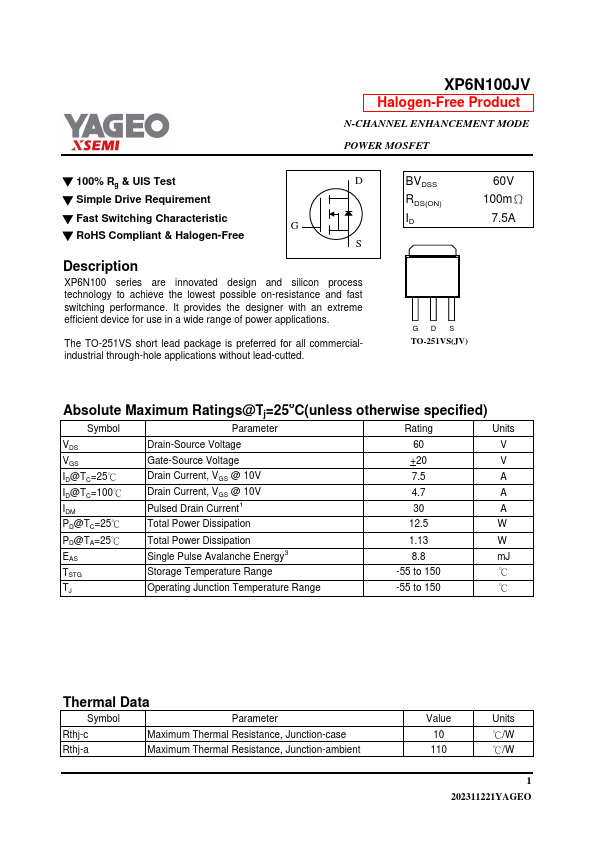

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP6N100JV Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP6N100 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP6N100JV PDF

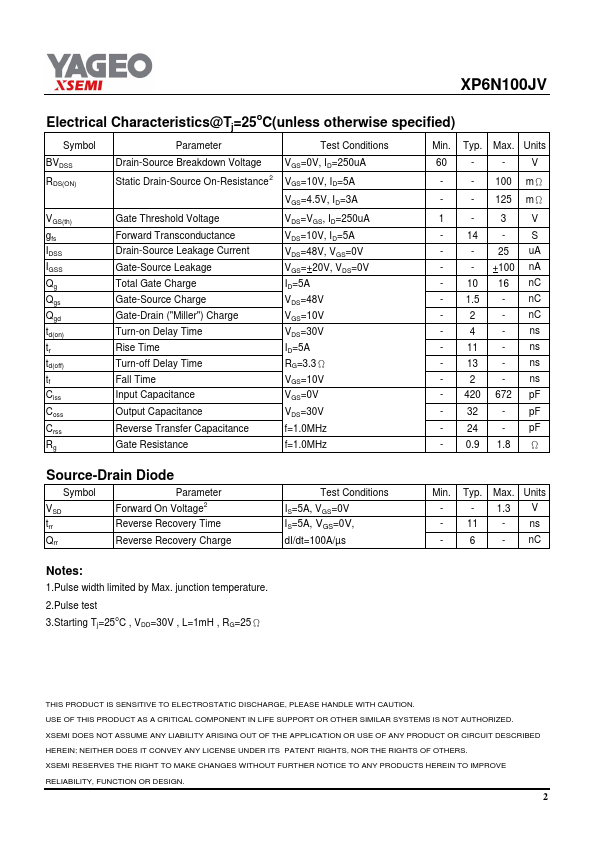

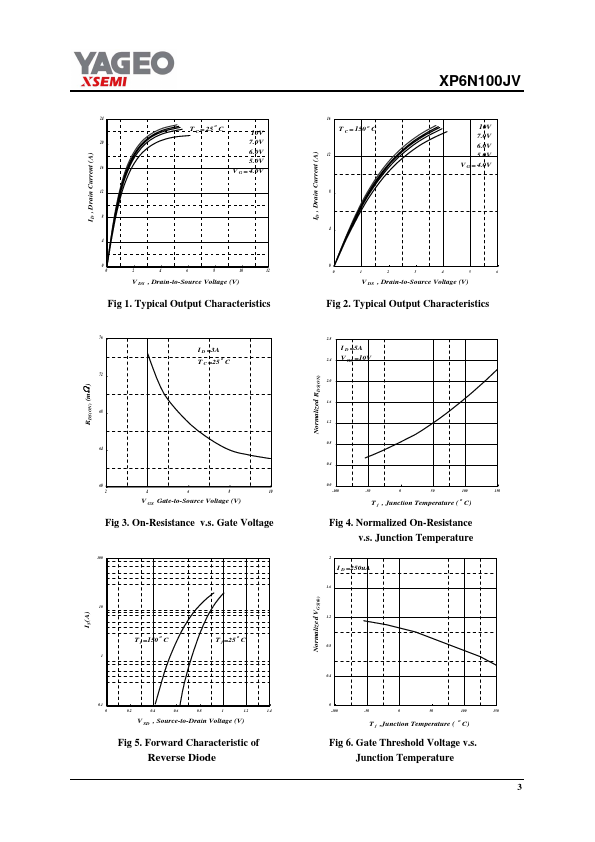

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP6N100JV
Manufacturer
YAGEO
File Size
159.82 KB
Datasheet
XP6N100JV-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-251VS short lead package is preferred for all commercialindustrial through-hole applications without lead-cutted. BVDSS RDS(ON) ID 60V 100mΩ 7.5A GD S TO-251VS(JV) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ ID@TC=100
