XP6NA6R0CMT-L N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA6R0CMT-L Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ SO-8 Compatible with Heatsink ▼ Low On-resista.
XP6NA6R0C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

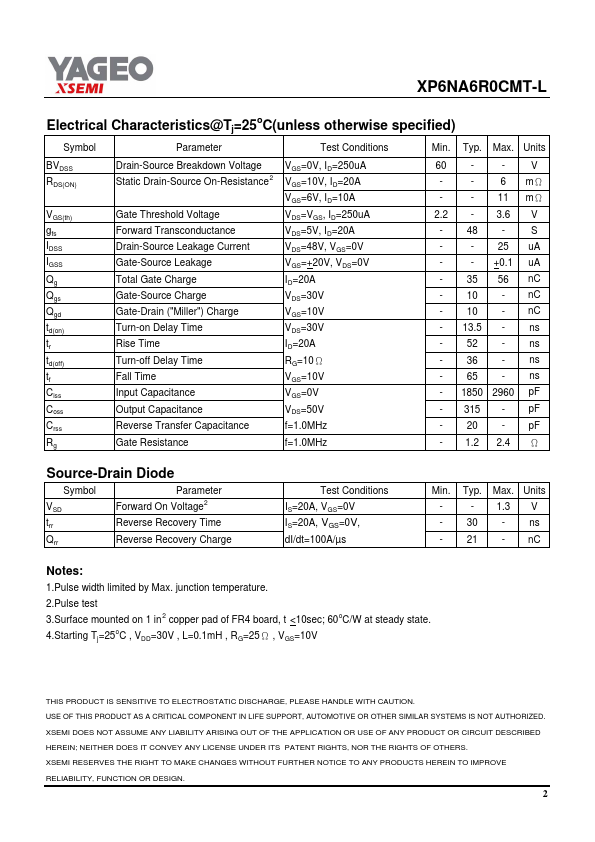

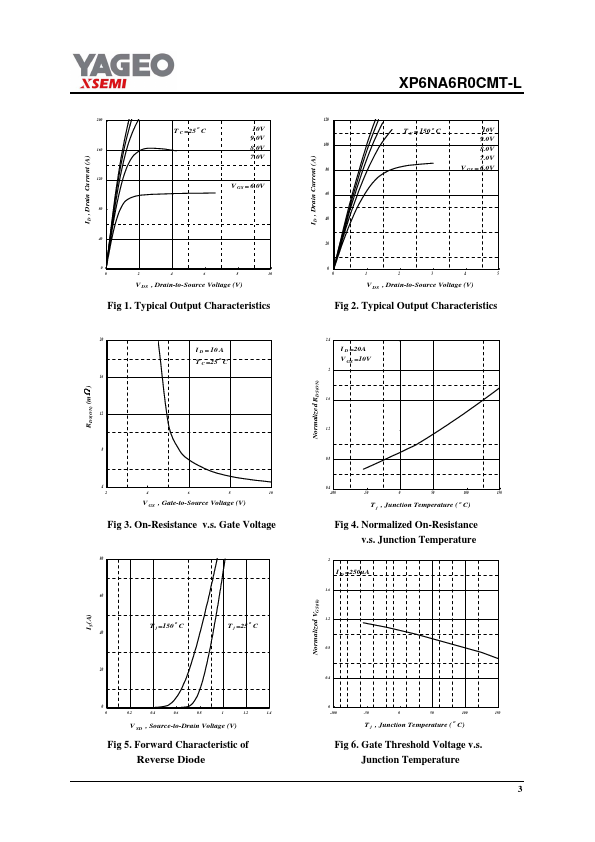

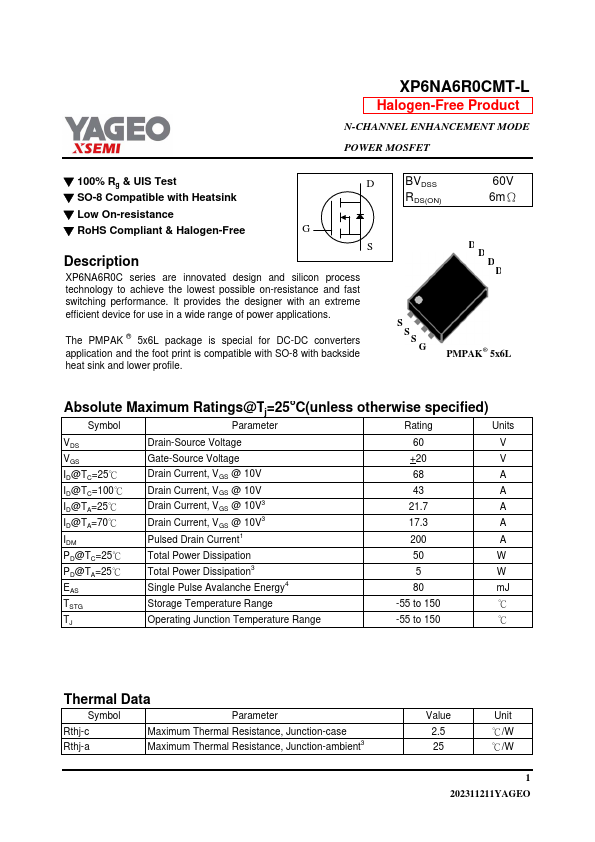

XP6NA6R0CMT-L Datasheet Preview — Preview of XP6NA6R0CMT-L PDF

Datasheet Specifications

Part number: XP6NA6R0CMT-L
Manufacturer: YAGEO
File Size: 263.97 KB
Datasheet: XP6NA6R0CMT-L-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6L package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 60V 6mΩ D D D D S S S G PMPAK® 5x6L Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
