XP6NA6R5H N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA6R5H Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP6NA6R5 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

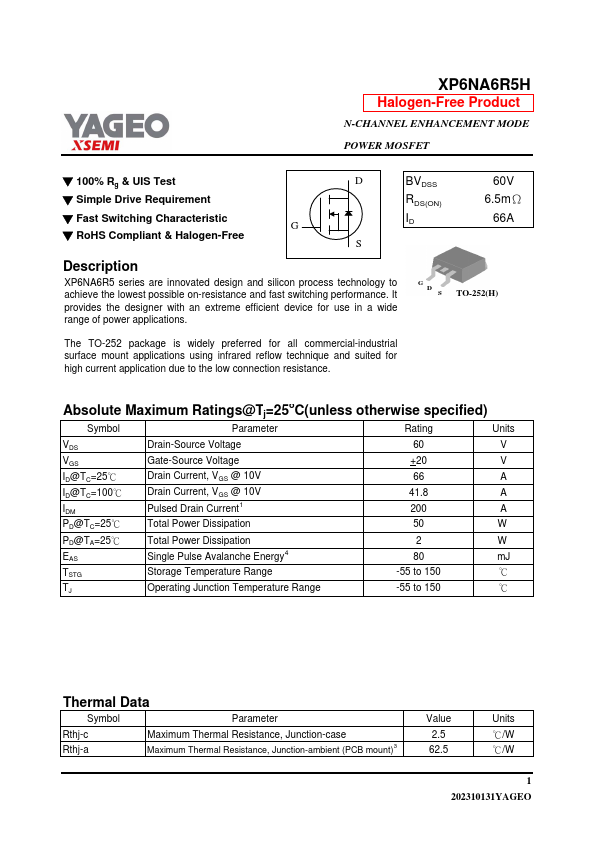

XP6NA6R5H Datasheet Preview — Preview of XP6NA6R5H PDF

Datasheet Specifications

Part number: XP6NA6R5H
Manufacturer: YAGEO
File Size: 180.49 KB
Datasheet: XP6NA6R5H-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G D S TO-252(H) The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Pa
