XP9581GP P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9581GP Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance ▼ Simple Drive Requirement ▼ Fast Switching Characteristic .
XP9581 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

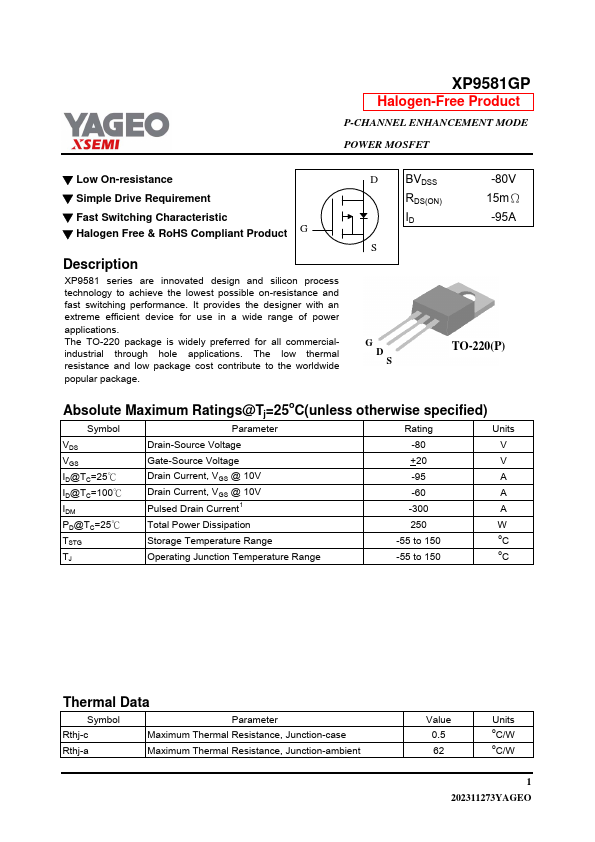

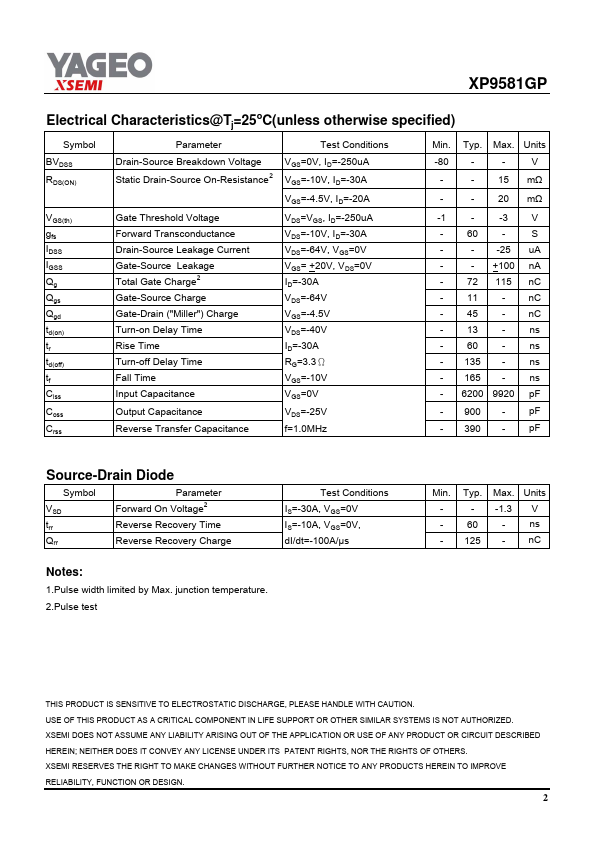

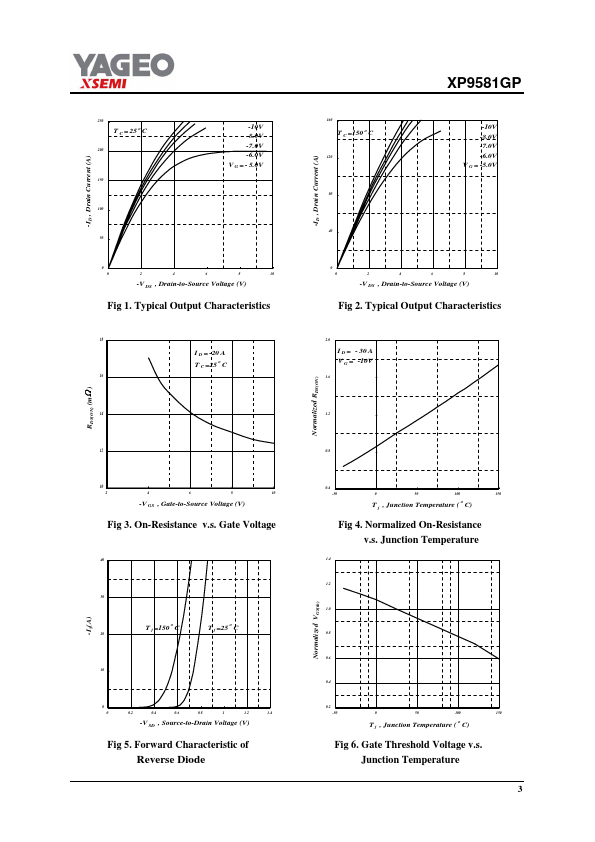

XP9581GP Datasheet Preview — Preview of XP9581GP PDF

Datasheet Specifications

Part number: XP9581GP
Manufacturer: YAGEO
File Size: 183.46 KB
Datasheet: XP9581GP-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. D BVDSS RDS(ON) ID S -80V 15mΩ -95A G D S TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise
