XP9593GS P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9593GS Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP9593 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

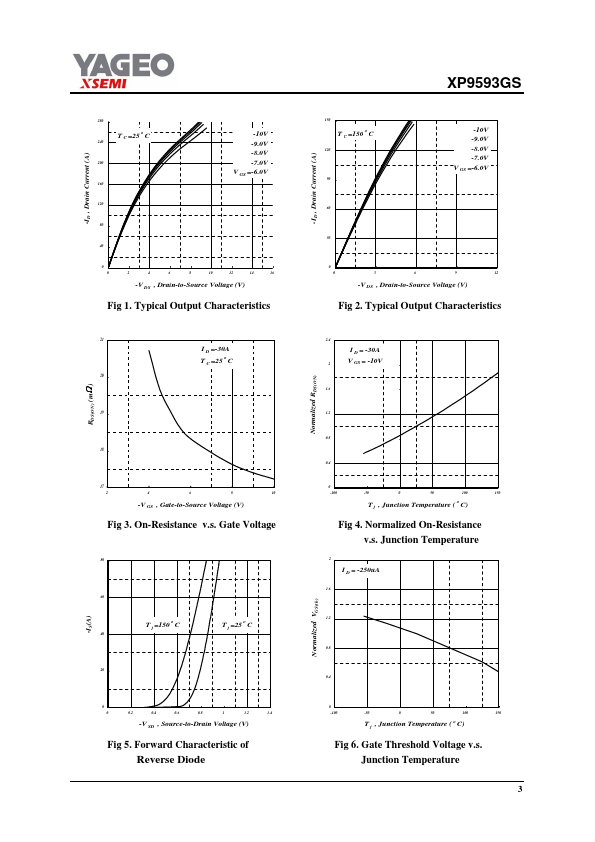

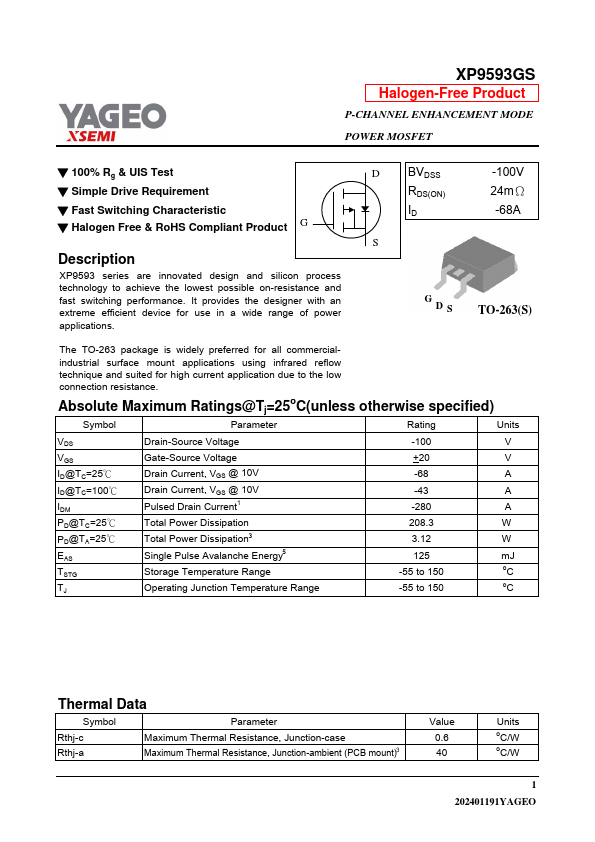

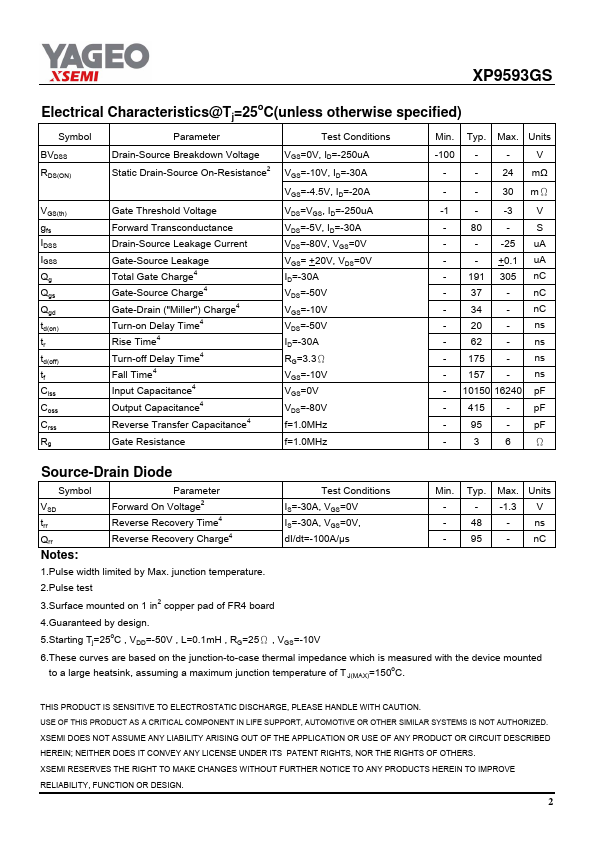

XP9593GS Datasheet Preview — Preview of XP9593GS PDF

Datasheet Specifications

Part number: XP9593GS
Manufacturer: YAGEO
File Size: 294.85 KB
Datasheet: XP9593GS-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* D BVDSS RDS(ON) ID S -100V 24mΩ -68A GDS TO-263(S) The TO-263 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. Absolute Maximum Ratings@Tj=25oC(u
