XP9938AGEY DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9938AGEY Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive ▼ Low On-resistance ▼ Surface Mount Package.
XP9938A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

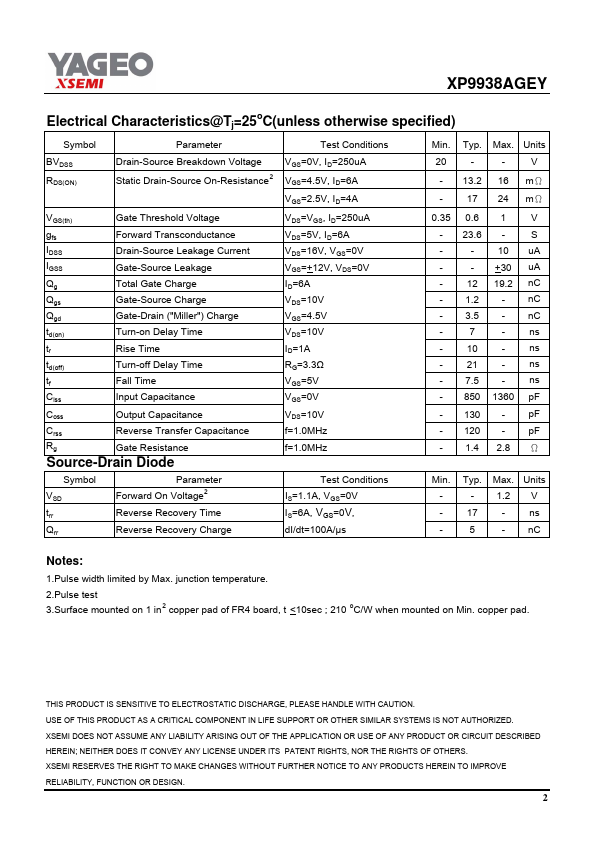

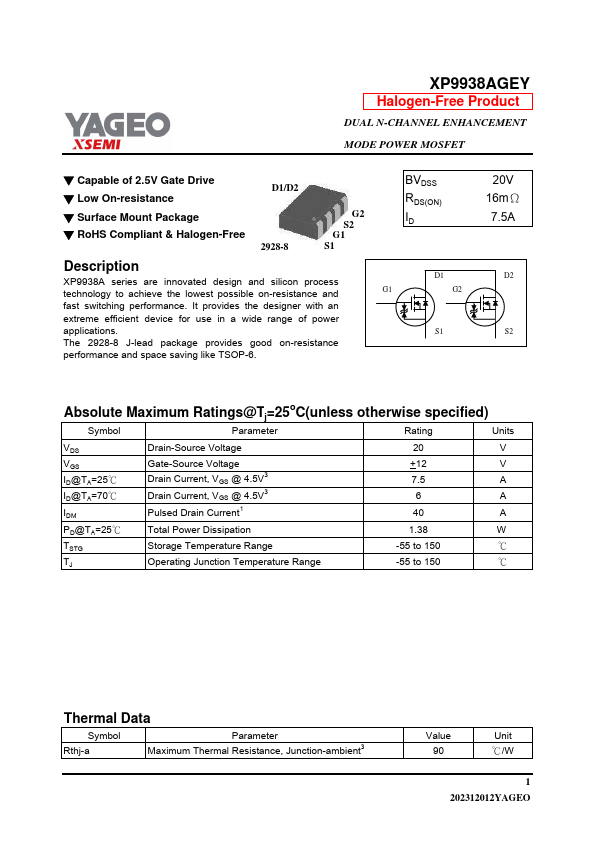

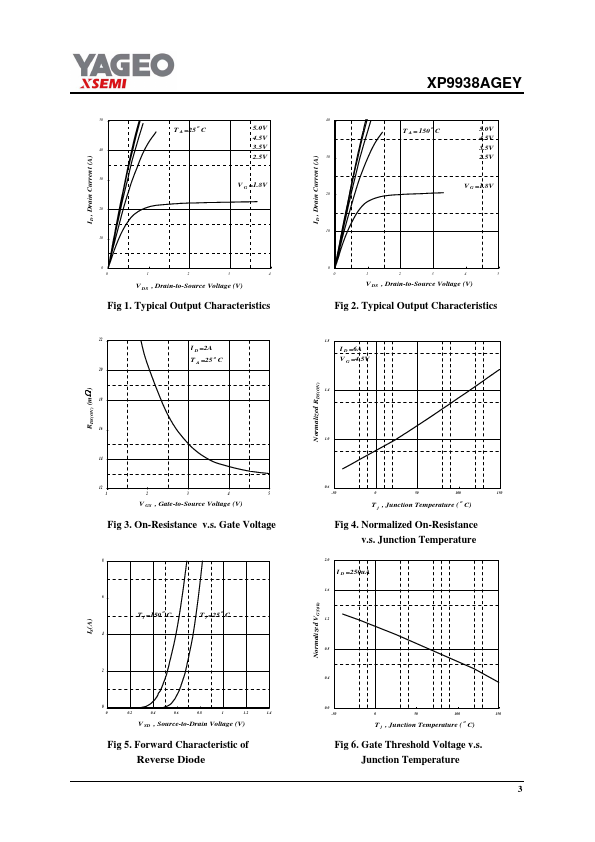

XP9938AGEY Datasheet Preview — Preview of XP9938AGEY PDF

Datasheet Specifications

Part number: XP9938AGEY
Manufacturer: YAGEO
File Size: 238.11 KB
Datasheet: XP9938AGEY-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The 2928-8 J-lead package provides good on-resistance performance and space saving like TSOP-6. BVDSS RDS(ON) ID D1 G1 G2 S1 20V 16mΩ 7.5A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ
