XP9938GEM DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9938GEM Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Performan.
XP9938 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

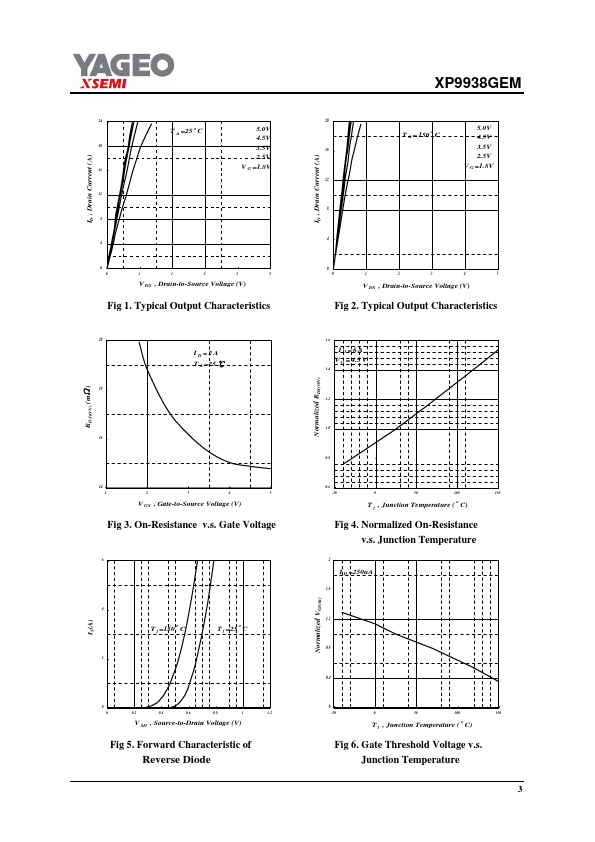

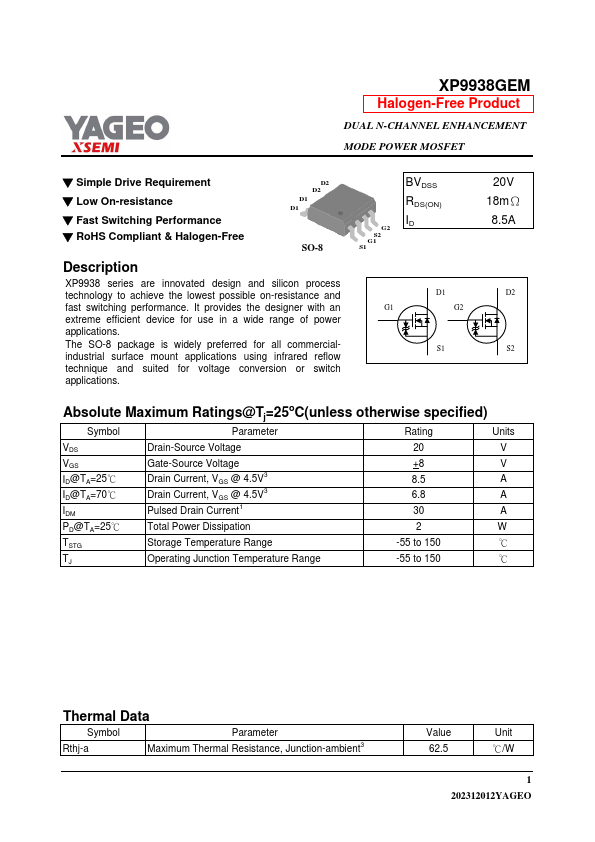

XP9938GEM Datasheet Preview — Preview of XP9938GEM PDF

Datasheet Specifications

Part number: XP9938GEM
Manufacturer: YAGEO
File Size: 205.88 KB
Datasheet: XP9938GEM-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. G2 S2 G1 S1 BVDSS RDS(ON) ID D1 G1 G2 S1 20V 18mΩ 8.5A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwi
