XP9963GP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9963GP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Characteristic .
XP9963 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

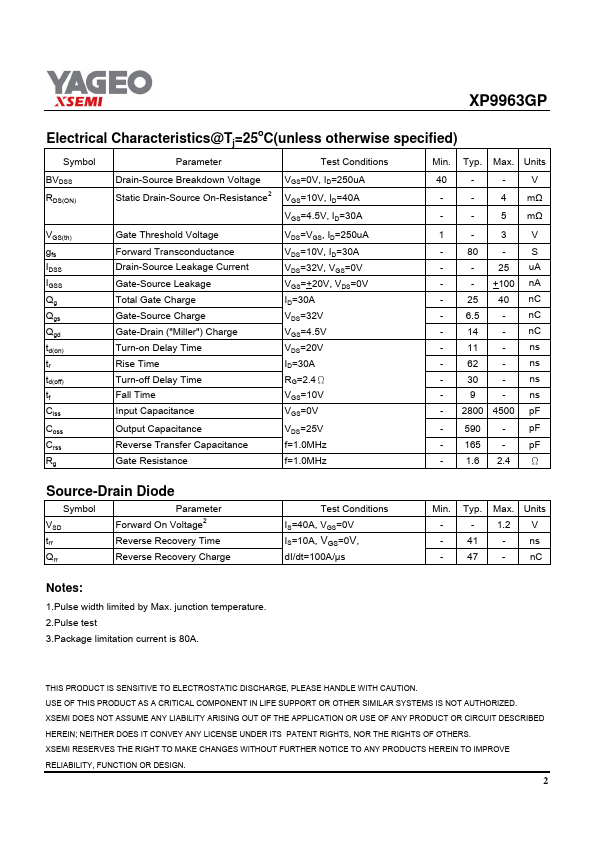

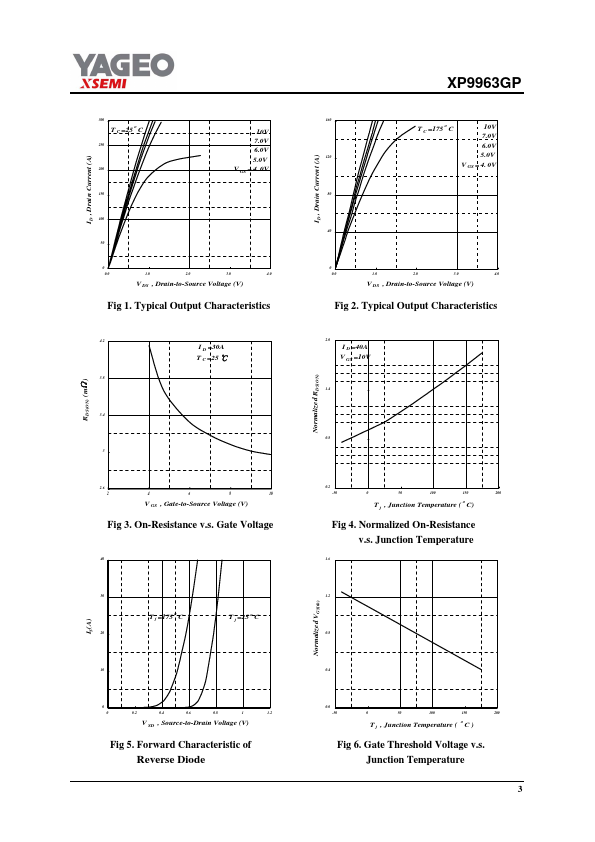

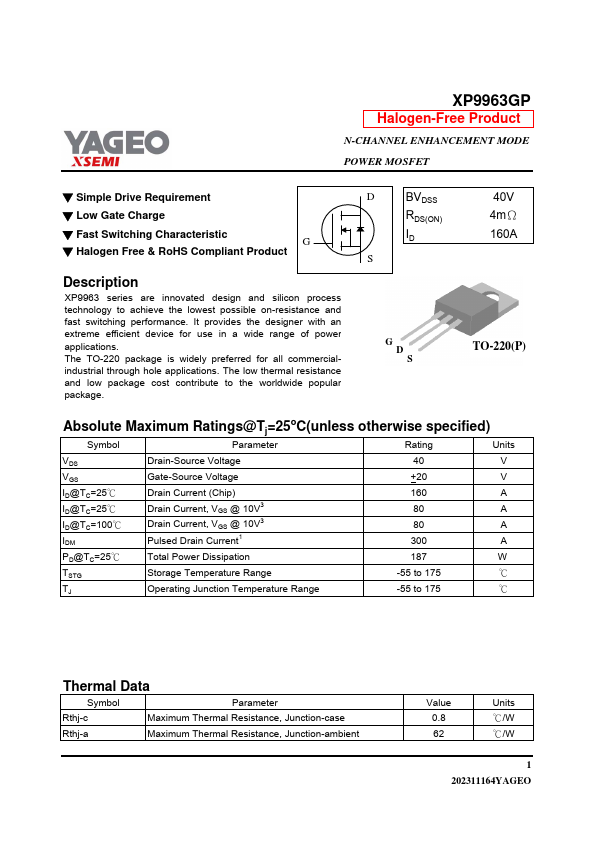

XP9963GP Datasheet Preview — Preview of XP9963GP PDF

Datasheet Specifications

Part number: XP9963GP
Manufacturer: YAGEO
File Size: 184.63 KB
Datasheet: XP9963GP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. D BVDSS RDS(ON) ID S G D S 40V 4mΩ 160A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise spe
