XP9938GEY DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9938GEY Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 1.8V Gate Drive ▼ Lower on-resistance ▼ Surface Mount Packag.
XP9938 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

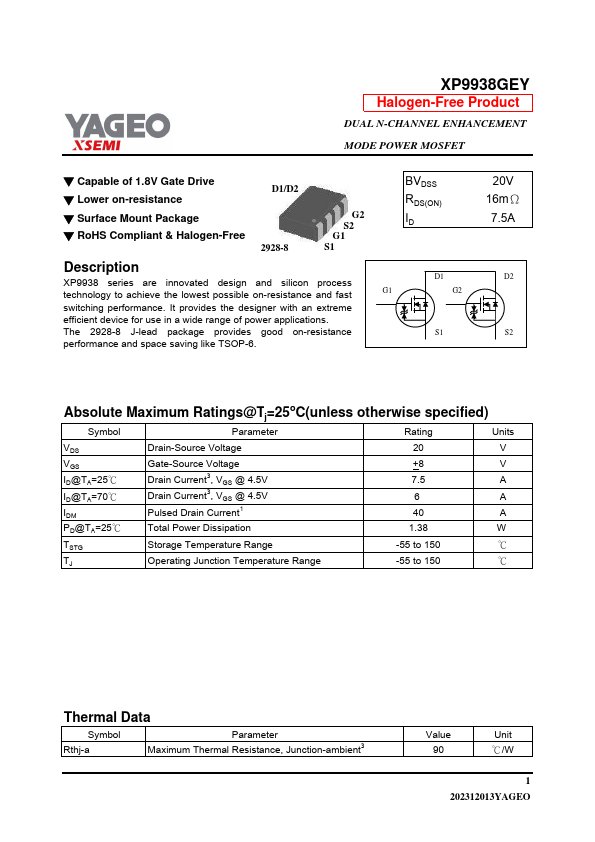

Preview of XP9938GEY PDF

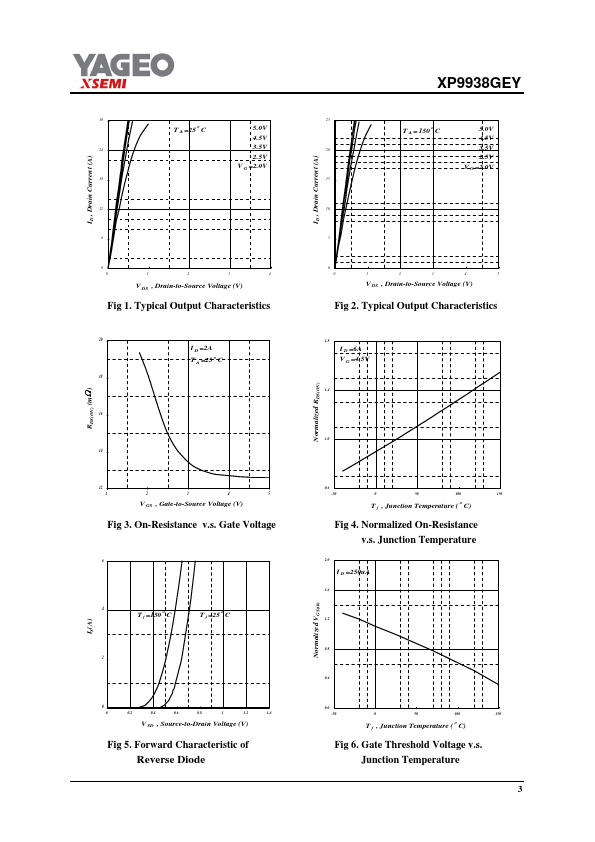

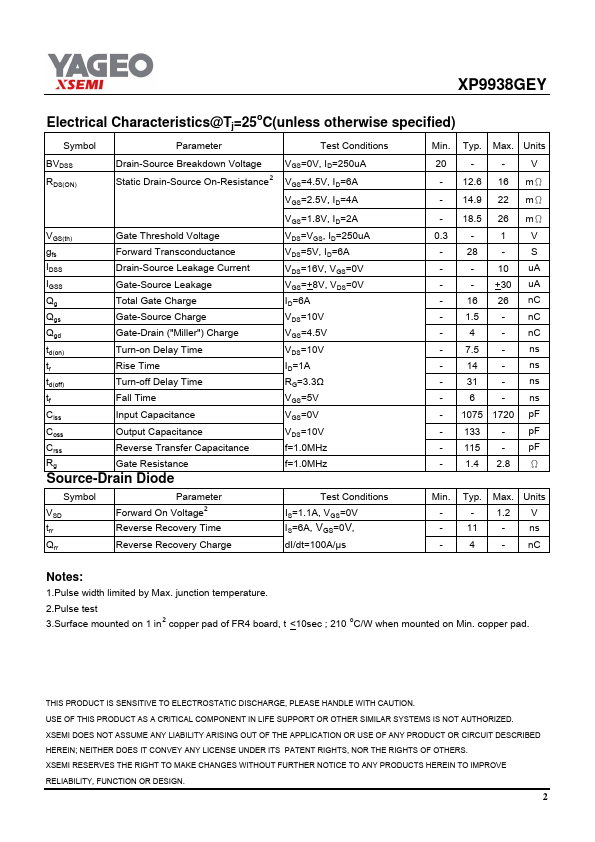

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9938GEY
Manufacturer
YAGEO
File Size
237.27 KB
Datasheet
XP9938GEY-YAGEO.pdf
Description
DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The 2928-8 J-lead package provides good on-resistance performance and space saving like TSOP-6. BVDSS RDS(ON) ID D1 G1 G2 S1 20V 16mΩ 7.5A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 20 V VGS ID@TA=25℃ ID@
