DC2100A20 - Directional Coupler

Product Overview

Yantel

📥 Download Datasheet

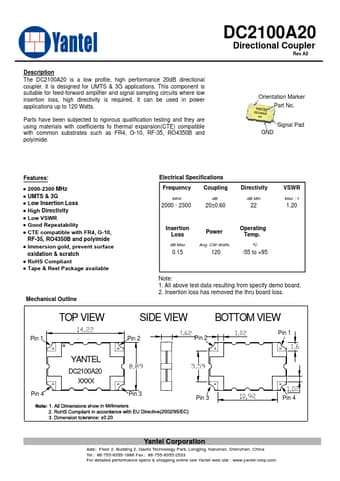

DC2100A20 Directional Coupler by Yantel - Datasheet Preview — Datasheet preview – DC2100A20

Datasheet Details

Part number	DC2100A20
Manufacturer	Yantel
File Size	1.44 MB
Description	Directional Coupler
Datasheet	DC2100A20 Datasheet
Additional preview pages of the DC2100A20 datasheet.

Product details

Description

The DC2100A20 is a low profile, high performance 20dB directional coupler.

Features

2000-2300 MHz.
UMTS & 3G.
Low Insertion Loss.
High Directivity.
Low VSWR.
Good Repeatability.
CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide.
Immersion gold, prevent surface oxidation & scratch.
RoHS Compliant.
Tape & Reel Package available Mechanical Outline TOP VIEW Pin 1 Electrical Specifications Frequency Coupling MHz 2000 - 2300 dB 20±0.60 Directivity dB Min 22 VSWR Max : 1 1.20 Insertion Loss dB Max 0.15 Power Avg. CW.
