DC2100P05 Datasheet, Coupler, Yantel

DC2100P05 Features

  • Coupler
  • 2000-2300 MHz
  • W-CDMA
  • Low Insertion Loss
  • High Directivity
  • Low VSWR
  • Good Repeatability
  • CTE compatible with FR4, G-10

PDF File Details

Part number:

DC2100P05

Manufacturer:

Yantel

File Size:

1.73MB

Download:

📄 Datasheet

Description:

Directional coupler. The DC2100P05 is a low profile, high performance 5dB directional coupler. It is designed for W-CDMA applications. This component is s

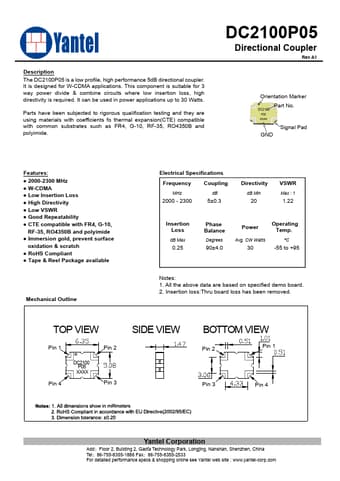

Datasheet Preview: DC2100P05 📥 Download PDF (1.73MB)
Page 2 of DC2100P05 Page 3 of DC2100P05

DC2100P05 Application

  • Applications This component is suitable for 3 way power divide & combine circuits where low insertion loss, high directivity is required. It can be
