DC2100P20 - Directional Coupler

Product Overview

Yantel

📥 Download Datasheet

DC2100P20 Directional Coupler by Yantel - Datasheet Preview — Datasheet preview – DC2100P20

Datasheet Details

Part number	DC2100P20
Manufacturer	Yantel
File Size	1.42 MB
Description	Directional Coupler
Datasheet	DC2100P20 Datasheet
Additional preview pages of the DC2100P20 datasheet.

Product details

Description

The DC2100P20 is a low profile, high performance 20dB directional coupler.

Features

2000-2300 MHz.
UMTS & WCDMA.
Low Insetion Loss.
High Directivity.
Low VSWR.
Good Repeatability.
CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide.
Immersion gold, prevent surface oxidation & scratch.
RoHS Compliant.

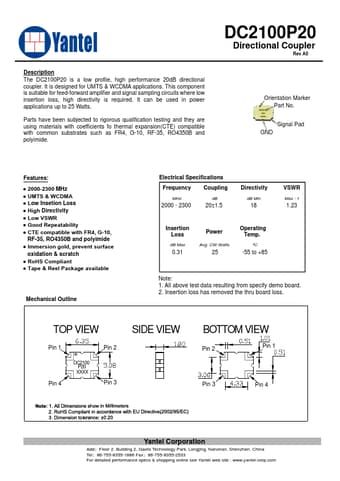

Tape & Reel Package available Mechanical Outline Electrical Specifications Frequency Coupling MHz 2000 - 2300 dB 20±1.5 Directivity dB Min 18 VSWR Max : 1 1.23 Insertion Loss dB Max 0.31 Power Avg. CW Watts 25 Ope.
