DC21

CMOS Gate Array

DC21 General Description

DC2x is a family of two-to-four line decoder/demultiplexers with active low enable. Logic Symbol Truth Table DC2x E Q3 Q2 S1 Q1 S0 Q0 EN S1 S0 Q0N Q1N Q2N Q3N HXXHHHH L L L LHHH L LHHLHH L H L HH L H L HHHHH L HDL Syntax Verilog DC2x inst_name (Q0N, Q1N, Q2N, Q3N, EN, S0, S1); VHDL inst_name: .

DC21 Datasheet (24.63 KB)

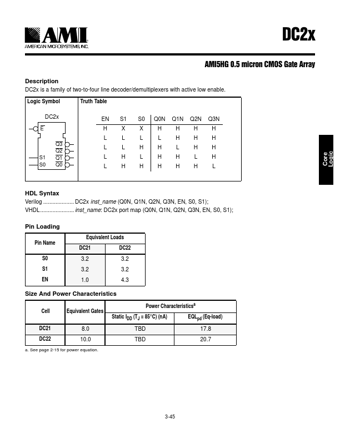

Preview of DC21 PDF

Datasheet Details

Part number:

DC21

Manufacturer:

AMI

File Size:

24.63 KB

Description:

Cmos gate array.
