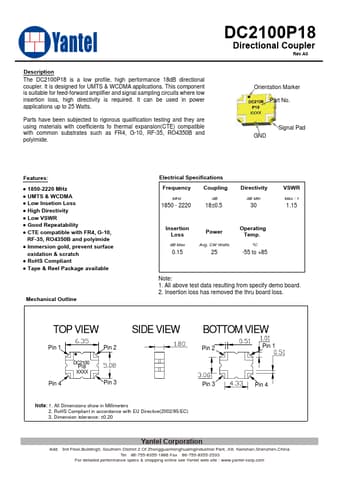

DC2100P18 Datasheet, Coupler, Yantel

DC2100P18 Features

• Coupler
• 1850-2220 MHz
• UMTS & WCDMA
• Low Insetion Loss
• High Directivity
• Low VSWR
• Good Repeatability
• CTE compatible with FR4,

PDF File Details

Part number:

DC2100P18

Manufacturer:

Yantel

File Size:

396.17kb

Download:

📄 Datasheet

Description:

Directional coupler. The DC2100P18 is a low profile, high performance 18dB directional coupler. It is designed for UMTS & WCDMA applications. This compone

DC2100P18 Application

• Applications This component is suitable for feed-forward amplifier and signal sampling circuits where low insertion loss, high directivity is requi
