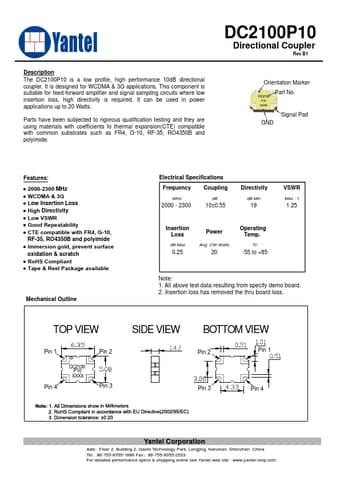

DC2100P10 Datasheet, Coupler, Yantel

DC2100P10 Features

• Coupler
• 2000-2300 MHz
• WCDMA & 3G
• Low Insertion Loss
• High Directivity
• Low VSWR
• Good Repeatability
• CTE compatible with FR4,

PDF File Details

Part number:

DC2100P10

Manufacturer:

Yantel

File Size:

1.35MB

Download:

📄 Datasheet

Description:

Directional coupler. The DC2100P10 is a low profile, high performance 10dB directional coupler. It is designed for WCDMA & 3G applications. This component

DC2100P10 Application

• Applications This component is suitable for feed-forward amplifier and signal sampling circuits where low insertion loss, high directivity is requi
