DC2100A30 - Directional Coupler

Product Overview

Yantel

📥 Download Datasheet

DC2100A30 Directional Coupler by Yantel - Datasheet Preview — Datasheet preview – DC2100A30

Datasheet Details

Part number	DC2100A30
Manufacturer	Yantel
File Size	1.53 MB
Description	Directional Coupler
Datasheet	DC2100A30 Datasheet
Additional preview pages of the DC2100A30 datasheet.

Product details

Description

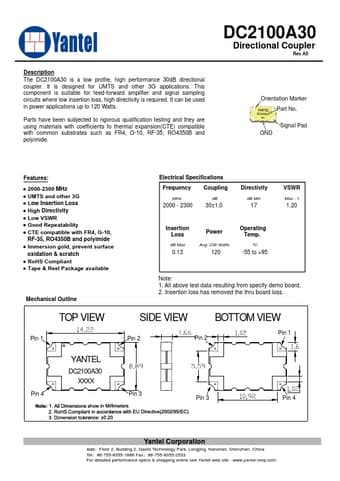

The DC2100A30 is a low profile, high performance 30dB directional coupler.

Features

2000-2300 MHz.
UMTS and other 3G.
Low Insertion Loss.
High Directivity.
Low VSWR.
Good Repeatability.
CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide.
Immersion gold, prevent surface oxidation & scratch.
RoHS Compliant.
Tape & Reel Package available Mechanical Outline TOP VIEW Pin 1 Electrical Specifications Frequency Coupling MHz 2000 - 2300 dB 30±1.0 Directivity dB Min 17 VSWR Max : 1 1.20 Insertion Loss dB Max 0.13 Power.
