V613ME04, V613ME04_Z - OSCILLATOR

V613ME04 Description

www.DataSheet4U.com V613ME04 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev A.

V613ME04 Features

* Frequency Range: 1805 - 1880 MHz
* Tuning Voltage: 1-8 Vdc

V613ME04 Applications

* PCS Handhelds
* Portable Receivers
* Mobile Communications PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacita

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V613ME04, V613ME04_Z. Please refer to the document for exact specifications by model.

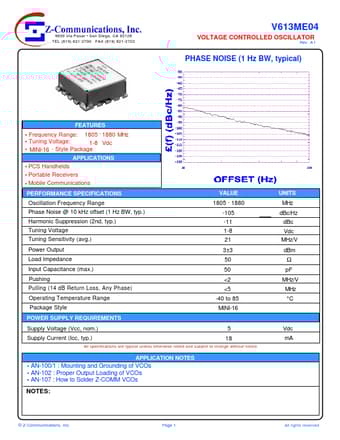

datasheet Preview Page 2

Datasheet Details

Part number
V613ME04, V613ME04_Z
Manufacturer
Z-Communications
File Size
192.88 KB
Datasheet
V613ME04_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: V613ME04, V613ME04_Z.
Please refer to the document for exact specifications by model.
