V613ME11, V613ME11_Z - OSCILLATOR

V613ME11 Description

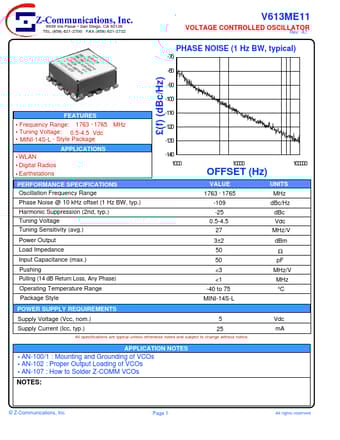

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 V613ME11 VOLTAGE CONTROLLED OSCILLATOR Rev A1 .

V613ME11 Features

* Frequency Range: 1763 - 1765 MHz
* Tuning Voltage: 0.5-4.5 Vdc

V613ME11 Applications

* WLAN
* Digital Radios
* Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushing Pu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V613ME11, V613ME11_Z. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
V613ME11, V613ME11_Z
Manufacturer
Z-Communications
File Size
184.93 KB
Datasheet
V613ME11_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: V613ME11, V613ME11_Z.
Please refer to the document for exact specifications by model.
