A3S64D40GTP Datasheet - Zentel

A3S64D40GTP - 64M Double Data Rate Synchronous DRAM

A3S64D40GTP is a 4-bank x 1,048,576-word x 16bit double data rate synchronous DRAM , with SSTL_2 interface.

All control and address signals are referenced to the rising edge of CLK.

Input data is registered on both edges of data strobe ,and output data and data strobe are referenced on both edges of

A3S64D40GTP Features

* - Vdd=VddQ=2.5V+0.2V (-50) - Double data rate architecture ; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock input (CLK and /CLK) - DLL aligns DQ and DQS transitions with CLK transitions edges of DQS - Commands entered on e

A3S64D40GTP-Zentel.pdf

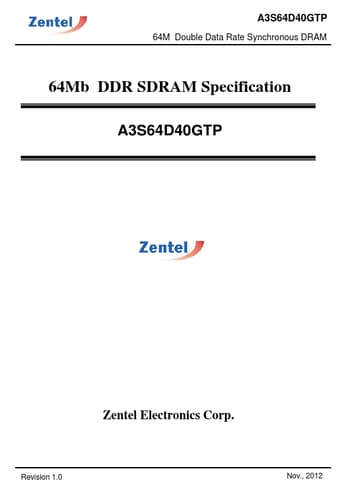

Preview of A3S64D40GTP PDF
A3S64D40GTP Datasheet Preview Page 2 A3S64D40GTP Datasheet Preview Page 3

Datasheet Details

Part number:

A3S64D40GTP

Manufacturer:

Zentel

File Size:

1.54 MB

Description:

64m double data rate synchronous dram.
