BCX38 - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

Datasheet Summary

Features

  • 60 Volt VCEO.
  • Gain of 10K at IC=0.5 Amp.
  • Ptot=1 Watt BCX38A/B/C C B E.

📥 Download Datasheet

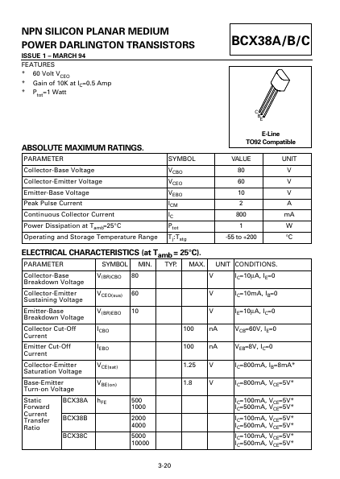

Datasheet preview – BCX38

Datasheet Details

Part number BCX38
Manufacturer Zetex Semiconductors
File Size 61.84 KB
Description NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS
Datasheet download datasheet BCX38 Datasheet
Additional preview pages of the BCX38 datasheet.

📁 Similar Datasheet

  • BCX38 - NPN Transistor (JCST)
  • BCX38A - NPN SILICON PLANAR EPITAXIAL DARLINGTON TRANSISTORS (CDIL)
  • BCX38B - Si-Epitaxial Planar Darlington-Transistors (Diotec Semiconductor)
  • BCX38B - NPN SILICON PLANAR EPITAXIAL DARLINGTON TRANSISTORS (CDIL)
  • BCX38C - NPN SILICON PLANAR EPITAXIAL DARLINGTON TRANSISTORS (CDIL)
  • BCX30 - HIGH VOLTAGE TRANSISTORS (Motorola)
  • BCX39 - PNP SILICON AF TRANSISTORS (Siemens Semiconductor Group)
  • BCX12 - NPN Silicon AF Switching Transistor (For general AF applications High breakdown voltage) (Siemens Semiconductor Group)
  • BCX13 - PNP Silicon AF Switching Transistor (For general AF applications High breakdown voltage) (Siemens Semiconductor Group)
  • BCX17 - PNP general purpose transistors (NXP)
Other Datasheets by Zetex Semiconductors
  • BCX38A - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS
  • BCX38B - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS
  • BCX38C - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS
  • BCX41 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
  • BCX68 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
  • BCX69 - PNP SILICON PLANAR MEDIUM POWER TRANSISTOR
  • BCX70 - NPN SILICON PLANAR SMALL SIGNAL TRANSISTOR
  • BCX70G - NPN Transistor

Full PDF Text Transcription

Click to expand full text
NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ISSUE 1 – MARCH 94 FEATURES * 60 Volt VCEO * Gain of 10K at IC=0.5 Amp * Ptot=1 Watt BCX38A/B/C C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range SYMBOL VCBO VCEO VEBO ICM IC Ptot Tj:Tstg 80 60 10 2 E-Line TO92 Compatible VALUE UNIT V V V A mA W °C 800 1 -55 to +200 ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
