BCX38C - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

BCX38C Description

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ISSUE 1 – MARCH 94 .

BCX38C Features

* 60 Volt VCEO
* Gain of 10K at IC=0.5 Amp
* Ptot=1 Watt BCX38A/B/C C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temp

📥 Download Datasheet

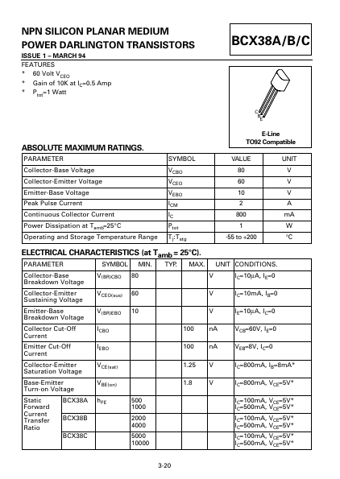

Preview of BCX38C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCX38C
Manufacturer
Zetex Semiconductors
File Size
61.84 KB
Datasheet
BCX38C_ZetexSemiconductors.pdf
Description
NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS
