BCX38A, NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ISSUE 1 MARCH 94 .

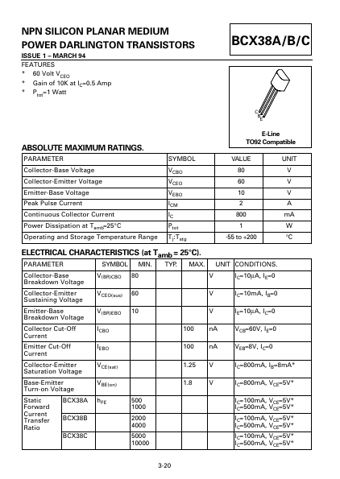

datasheet Preview Page 1 from Datasheet4u.com

BCX38A_ZetexSemiconductors.pdf

BCX38A Datasheet Preview — Preview of BCX38A PDF

Datasheet Details

Part number:

BCX38A

Manufacturer:

Zetex Semiconductors

File Size:

61.84 KB

Description:

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS

Features

* 60 Volt VCEO
* Gain of 10K at IC=0.5 Amp
* Ptot=1 Watt BCX38A/B/C C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temp
