DN67

ZXSC400 solution for 1W high powered LED

DN67 General Description

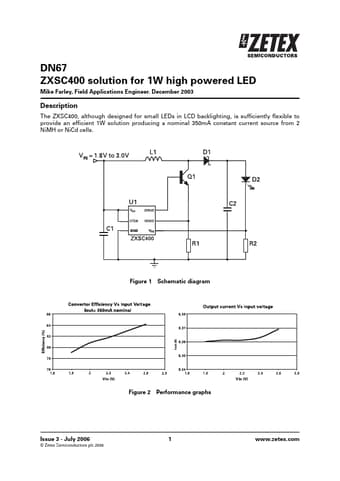

The ZXSC400, although designed for small LEDs in LCD backlighting, is sufficiently flexible to provide an efficient 1W solution producing a nominal 350mA constant current source from 2 NiMH or NiCd cells. Figure 1 Schematic diagram Figure 2 Performance graphs Issue 3 - July 2006 © Zetex Semicon.
